5" Nora 16.6 Watt 2700K LED Retrofit Reflector Trim in White

- Style # 1F968
$53.91

This energy-conscious 5" recessed LED downlight with reflector trim fits into the existing housing, making upgrading your system a snap.

More Details >
5" Nora 16.6 Watt 2700K LED Retrofit Reflector Trim in White
Houzz
Print Email
Product Details

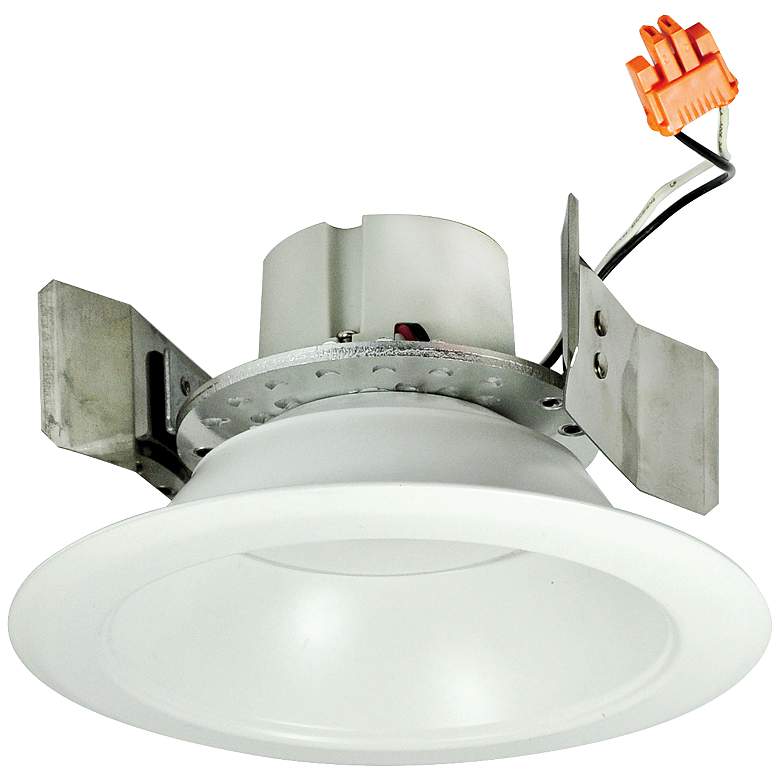

This round, white finish recessed LED downlight with reflector trim is for retrofit use in existing 5" IC or non-IC housings. Its sleek and simple spun aluminum design has a deep-set diffused lens to provide excellent visual comfort. Its Cree COB LED unit with a built-in LED driver provides 1000 lumens of bright 2700K light output while consuming only 16.6 watts of power. For commercial and residential applications, it includes a medium base screw-in socket for easy retrofitting into existing medium base downlight housings from Nora Lighting or any manufacturer.

  • 5" LED recessed 2700K retrofit reflector trim.
  • White finish.
  • Spun aluminum reflector.
  • Includes medium base socket for retrofitting into existing 5" downlight housing.
  • By Nora Lighting; compatible with all manufacturers' housings.
  • Includes a Cree COB 16.6 watt LED unit with LED driver.
  • 1000 lumen light output.
  • Light output comparable to a 75 watt incandescent bulb.
  • 2700K color temperature light.
  • 95 CRI.
  • Dimmable with most standard dimmers.
  • LED averages 50,000 life hours at 3 hour per day usage.
  • Measures 6 9/16" wide, 3 3/4" high.
  • 5" aperture.
Housing Options
Need Help With Your Lighting?

or call us at 800-782-1967
Trim With Housing Options To purchase trim with the correct housing
select one of the options below:
LED Air Tight 5&quot; Dedicated New Construction ICAT Housing
LED Air Tight 5" Dedicated New Construction ICAT Housing Style # 3C495

This 5" LED air tight dedicated IC housing is for new construction. Direct contact-rated, no minimum clearance is required. Featuring adjustable bar hangers that can be repositioned 90 degrees. A quick connector is provided for this Energy Star, damp-rated, Title 24-compliant housing. Compatible only with Nora Lighting LED 5" dedicated Diamond series select trims. 5" air tight LED dedicated IC housing for new construction. Direct contact-rated; no minimum clearance required. Adjusts for ceiling thickness from 5/8" to 1 1/4". Bar hangers are adjustable from 13 5/"8" to 24 1/2" and can be repositioned 90 degrees. Quick connector provided. Damp location-rated with feed-through. Title 24 compliant. Energy Star-rated. Compatible only with Nora Lighting 5" dedicated diamond trims NLEDC-561, NLEDC-571 (wet), NLEDC-562 and NLEDC-572 (wet).
View more details

Housing (3C495):
Trim (1F968):
Total Price:
$17.91
$53.91
$71.82


Nora 5&quot; New Construction ICAT Line Voltage Housing
Nora 5" New Construction ICAT Line Voltage Housing Style # R6086

This Nora Lighting 5" ICAT insulated line voltage ceiling housing is for new construction. Approved for direct contact with combustible materials and thermal insulation, and UL-listed for damp location and feed through. Featuring an adjustable socket mounting plate and adjustable bar hangers to 24 1/2" with captive nails. Maximum wattage for this quick connect housing varies by trim, and "AT" housing meets restricted airflow requirements. Nora 5" new construction ICAT line voltage housing. Adjusts for ceiling thickness from 5/8" to 1 1/4". Quick connector provided. "AT" housing meets restricted airflow requirements. UL-listed for damp locations with feed-through; air tight when installed in IC housing. Bar hangers adjust from 13 5/8" to 24" and can be repositioned 90 degrees. Direct contact-rated; no minimum clearance required. Junction box contains seven 1/2" knockouts and four ROMEX pryouts with strain relief. 75 watt R/PAR3
View more details

Housing (R6086):
Trim (1F968):
Total Price:
$18.18
$53.91
$72.09


LED Air Tight 5&quot; Dedicated Remodel ICAT Housing
LED Air Tight 5" Dedicated Remodel ICAT Housing Style # U1151

This 5" LED air tight dedicated IC housing is for remodel construction. Direct contact-rated, no minimum clearance is required. A quick connector is provided for this Energy Star, damp-rated, Title 24-compliant housing. Compatible only with Nora Lighting LED 5" dedicated Diamond series select trims. 5" air tight LED dedicated IC remodel housing. Direct contact-rated; no minimum clearance required. Adjusts for ceiling thickness from 3/8" to 1 1/4". High tension tempered springs secure remodel housing to the ceiling. Quick connector provided. Damp location-rated with feed-through. Title 24 compliant. Energy Star-rated. Compatible only with Nora Lighting 5" dedicated diamond trims NLEDC-561, NLEDC-571 (wet), NLEDC-562 and NLEDC-572 (wet).
View more details

Housing (U1151):
Trim (1F968):
Total Price:
$17.91
$53.91
$71.82


Q & A
Need Immediate Help? Try Chet
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
Would this fit into a standard 4 by 4 junction box?
Donald K on Jul 14, 2017
BEST ANSWER: Unfortunately, this light cannot be installed into a 4" inch electrical box. A recess housing is required for the installation of this light.
