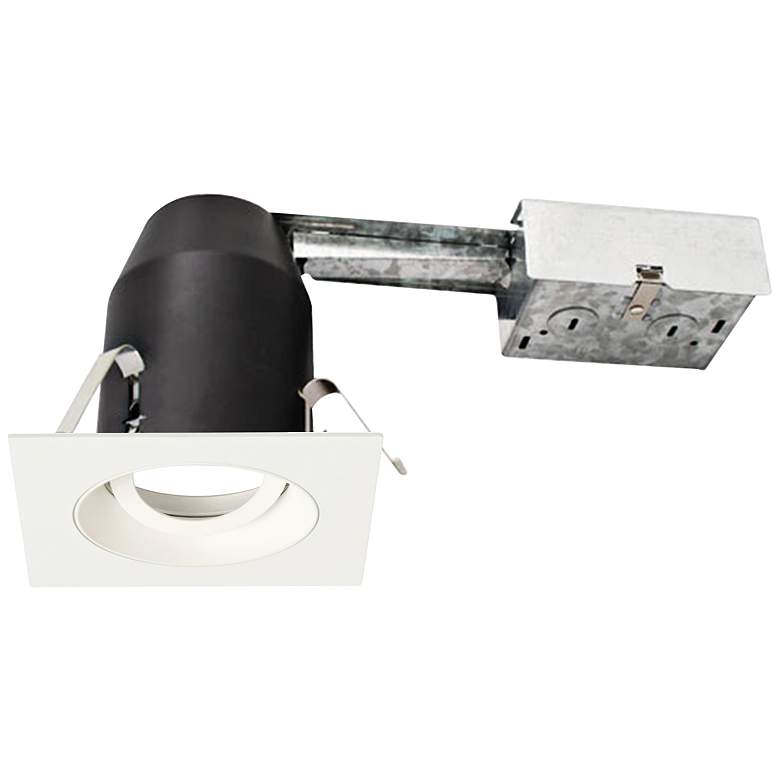

3" White 950 Lumen LED Remodel Square Gimbal Recessed Kit
- Free Shipping*
Return Policy
We stand behind the products we sell with a 60 day return policy. The process is easy, just contact us to receive an authorization number. Certain restrictions apply. You can read our complete policy in our help section.
-
Need help? Call 800-782-1967or
- Housing is 11" wide x 5 1/2" high overall. Maximum hole cutout is 3 3/4".
- Trim is 4 1/2" wide x 1 1/2" high. 3" aperture. For use with Koto LED module. Compatible with 3" recessed housings.
- LED module is 2 1/4" wide at the top x 2" wide at the bottom x 3" high. For use with 3" or 4" Elco recessed housings and Koto twist-lock trims.
- Elco complete 3" recessed lighting kit.
- Includes one dimmable 10 watt LED module. 950 lumen light output, comparable to a 60 watt incandescent. 3000K color temperature. 95+ CRI.
- LED averages 50,000 hours at 3 hours per day.
- Powder-coated white finish over die-cast aluminum trim. Steel housing. Die-cast aluminum LED module with frosted polycarbonate lens. Line voltage - 120V.
- IC-rated for use in direct contact with ceiling insulation.
- Trim has 35-degree adjustability with 358-degree rotation. LED module has 38-degree beam angle.
- Convenient twist-lock design for easy installation.
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
- ENERGY STAR® rated.
Use this three-inch white 950 lumen LED remodel square gimbal recessed kit as part of an Elco Lighting install.
Additional Info:
This three-inch white 950lm LED remodel square gimbal recessed kit from Elco Lighting features standard IC airtight remodel housing with a Pex square gimbal trim and Koto LED module. Steel housing and a die-cast aluminum LED module with frosted polycarbonate lens deliver a sleek appearance, as a 950 lumen output comparable to a 60 watt incandescent offers energy-saving illumination. Enjoy smooth and continuous dimming with a Triac or ELV dimmer, purchased separately. This complete kit is Title 24 and JA8-2016 compliant, and is UL listed for damp and wet locations.
Specifications
| Style Number | 77E06 |
|---|---|
| Finish | White |
| Color | Black |
| Type | Shower Lights |
| Brand | Elco Lighting |
| Usage | Complete Kits |
| UPC Code | 886305429902 |
|---|---|
| Manufacturer Number | 76H78-68T41-77D79 |
