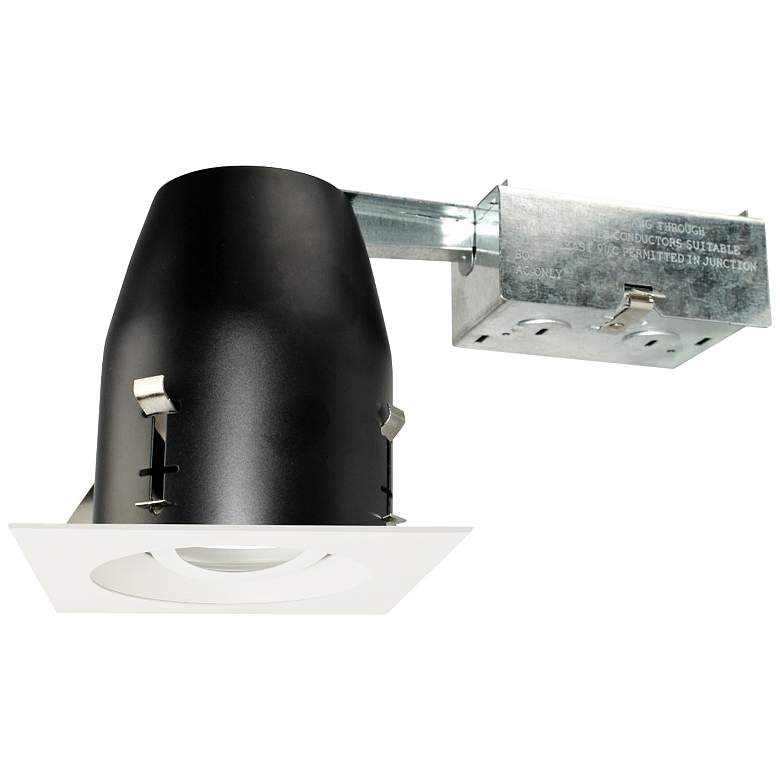

4" White 750 Lumen LED Remodel Square Gimbal Recessed Kit
4" White 750 Lumen LED Remodel Square Gimbal Recessed Kit more views

4" White 750 Lumen LED Remodel Square Gimbal Recessed Kit

- Style # 76J39
$116.97
  • Free Shipping*
In stock
Add to Cart
Product Details

Remodeling projects go smoothly with this white 750 lumen remodel square gimbal recessed lighting kit.

Additional Info:

Find all you need for a successful remodel lighting installation with this complete white four-inch 750 lumen square remodel gimbal recessed lighting kit from Elco Lighting, which includes adjustable IC airtight remodel housing, powder-coated white finish Pex square gimbal trim, and Koto LED module. Energy efficiency is a big bonus, as is the ability for smooth and continuous dimming with a separately purchased Triac or ELV dimmer. With die cast aluminum construction and steel housing, it offers 35-degree adjustability with 358-degree rotation, a 38-degree beam angle, and convenient twist-lock design. This ENERGY STAR® rated kit is Title 24 and JA8-2016 compliant, and UL-listed for damp and wet locations.

  • Housing is 9 1/4" wide x 5 1/2" high overall. Maximum hole cutout is 4 1/4".
  • Trim is 5" wide x 1 1/2" high. 3 3/4" aperture. For use with Koto LED module. Compatible with 4" recessed housings.
  • LED module is 2 1/4" wide at the top x 2" wide at the bottom x 3" high. For use with 3" or 4" Elco recessed housings and Koto twist-lock trims.
  • Includes one dimmable 10 watt LED module. 750 lumen light output, comparable to a 60 watt incandescent. 3000K color temperature. 95+ CRI.
  • LED averages 50,000 hours at 3 hours per day.
  • Powder-coated white finish over die-cast aluminum trim. Steel housing. Die-cast aluminum LED module with frosted polycarbonate lens. Line voltage - 120V.
  • IC-rated for use in direct contact with ceiling insulation.
  • Trim has 35-degree adjustability with 358-degree rotation. LED module has 38-degree beam angle.
  • Convenient twist-lock design for easy installation.
  • Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
