1_4" White 950 Lumen LED Remodel Square Gimbal Recessed Kit
2_4" White 950 Lumen LED Remodel Square Gimbal Recessed Kit more views

4" White 950 Lumen LED Remodel Square Gimbal Recessed Kit

  • Free Shipping*
Product Details

Have essentials on hand as you remodel a space, adding this white 950 lumen LED remodel square gimbal recessed lighting kit in your inventory.

Additional Info:

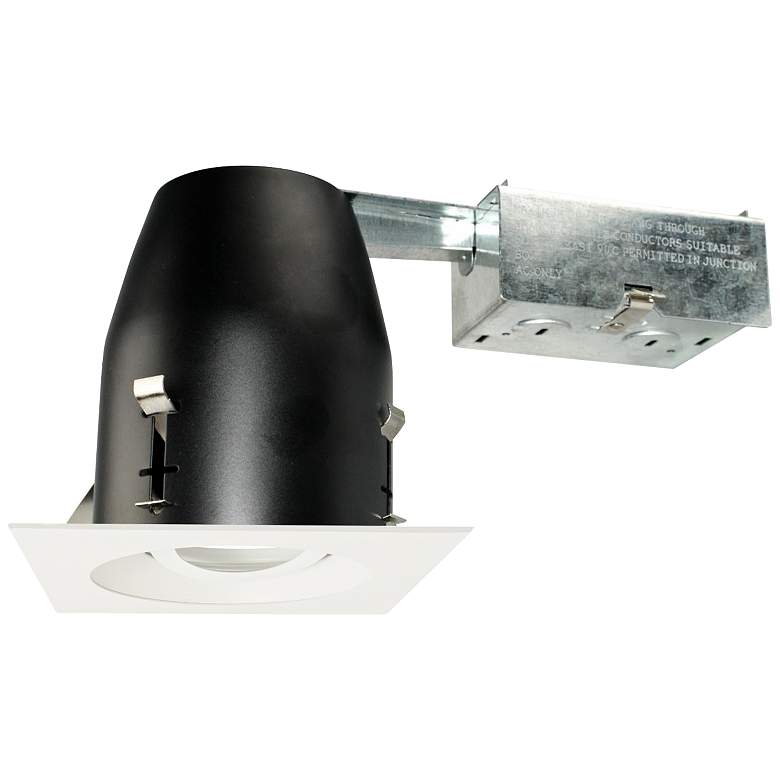

Find all you need for a successful remodel lighting installation with this complete white four-inch 950 lumen square remodel gimbal recessed lighting kit from Elco Lighting, which includes adjustable IC airtight remodel housing, powder-coated white finish Pex square gimbal trim, and Koto LED module. Energy efficiency is a big bonus, as is the ability for smooth and continuous dimming with a separately purchased Triac or ELV dimmer. With die cast aluminum construction and steel housing, it offers 35-degree adjustability with 358-degree rotation, a 38-degree beam angle, and convenient twist-lock design. This ENERGY STAR® rated kit is Title 24 and JA8-2016 compliant, and UL-listed for damp and wet locations.

  • Housing is 9 1/4" wide x 5 1/2" high overall. Maximum hole cutout is 4 1/4".
  • Trim is 5" wide x 1 1/2" high. 3 3/4" aperture. For use with Koto LED module. Compatible with 4" recessed housings.
  • LED module is 2 1/4" wide at the top x 2" wide at the bottom x 3" high. For use with 3" or 4" Elco recessed housings and Koto twist-lock trims.
  • Includes one dimmable 10 watt LED module. 950 lumen light output, comparable to a 60 watt incandescent. 3000K color temperature. 95+ CRI.
  • LED averages 50,000 hours at 3 hours per day.
  • Powder-coated white finish over die-cast aluminum trim. Steel housing. Die-cast aluminum LED module with frosted polycarbonate lens. Line voltage - 120V.
  • IC-rated for use in direct contact with ceiling insulation.
  • Trim has 35-degree adjustability with 358-degree rotation. LED module has 38-degree beam angle.
  • Convenient twist-lock design for easy installation.
  • Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.


Product Attributes
Style Number 76J49
Finish White
Color Black
Type Shower Lights
Brand Elco Lighting
Usage Complete Kits
Technical Specifications
UPC Code 886305426789
Manufacturer Number 76H78-8H544-76H75
