52" Casa Optima™ Brushed Nickel LED Ceiling
For Information: 800-782-1967 or
- Brushed nickel finish motor.
- Silver finish blades.
- 52" blade span.
- 14 degree blade pitch.
- 188 x 20 mm motor size.
- Rated for indoor use only.
- Includes brushed nickel finish industrial cage light kit.
- Requires an add-on wall or hand held remote LED control for light control (not included).
- Non-glass industrial design.
- Light kit measures 14" wide, 7 1/2" high.
- Includes three dimmable 4.5 watt LED bulbs.
- 2700K, 360 lumens
- Fan height 12" from ceiling to blades (with 4 1/2" downrod).
- Canopy is 5 1/4" wide, 3 1/4" high.
- 4 1/2" downrod included.
- Dual mountable.

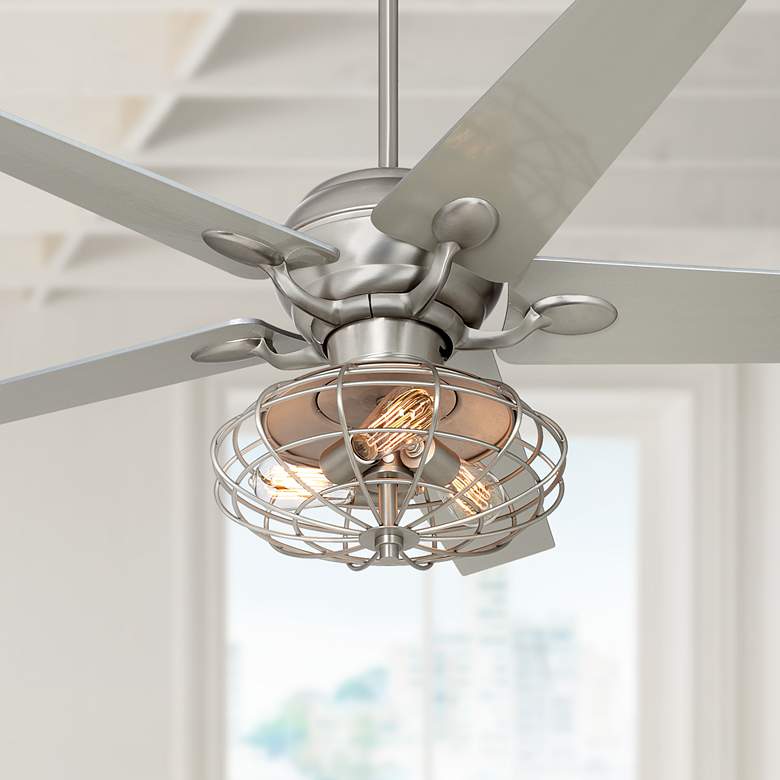

This ceiling fan features the motor for years of trouble-free use. The fan motor comes in a handsome brushed nickel finish and has been paired with beautiful silver finish fan blades. The design comes with an industrial style open caged metal light kit that features Nostalgic Edison style LED bulbs for a dramatic look.
Product Documents
| Category | Features (Mouseover the underlined feature to review its benefits) |
|---|---|
| Optional Controls | 4F273 - Add-on wall control system for incandescent, CFL and LED |
| Optional Controls | 4F256 - Hand Held Remote System for incandescent, CFL and LED |
| Optional Controls | 4F289 - Add-on Hand Held Remote for incandescent, CFL and LED |
| Speeds |
3 Speed
Allows Control of Air Movement: High, Medium, Low
|
| Fan Name | 52" Casa Optima™ Brushed Nickel LED Ceiling |
| Brand | Casa Vieja |
| Finish | Brushed Steel/Brushed Nickel |
| Motor Size | 188 x 20 |
| Motor Housing |
Die Cast Zinc
Less Vibration due to Higher Weight Volume of Housing. Die Cast Surface allows for Better Finishes
|
| Blade Pitch |
14°
Very Good Airflow
|
| Blade Span |
52"
Suited to Large Rooms Over 12'
|
| Blade Type | Not Reversible Blades |
| Reverse Air Flow |
Manual Reverse
Save Energy in the Summer & Winter:
When Fan is Off, Flip Blade Direction Switch on Side of Switch Assembly (Location Varies by Model) to Change Seasonal Direction of Blades. Keep Cool Air Down in Summer With Counter Clockwise Air Flow during Winter, Operate Fan in Clockwise Direction to Keep Warm Air from Rising |
| Mounting System |
Dual
Allows for mounting on high ceiling with down rod or on low ceiling with no down rod. (DUAL MOUNT SYSTEM MAY VARY BY FAN MODEL)
Fan can be mounted on vaulted or slanted ceiling up to 25° angle.* (*20° with receiver in canopy) |
| Light Kit | Light Kit Optional |
| Manufacturer's Warranty |
MFG. Limited Lifetime Motor Warranty + 1Yr Component Parts
Assurance of Quality Product
|
| Weight | 21 |
| Airflow | 5640 (High 2017 Tested) |
| ElectricityUse | 72 (High 2017 Tested |
| AirflowEfficiency | 92 (High 2017 Tested |
