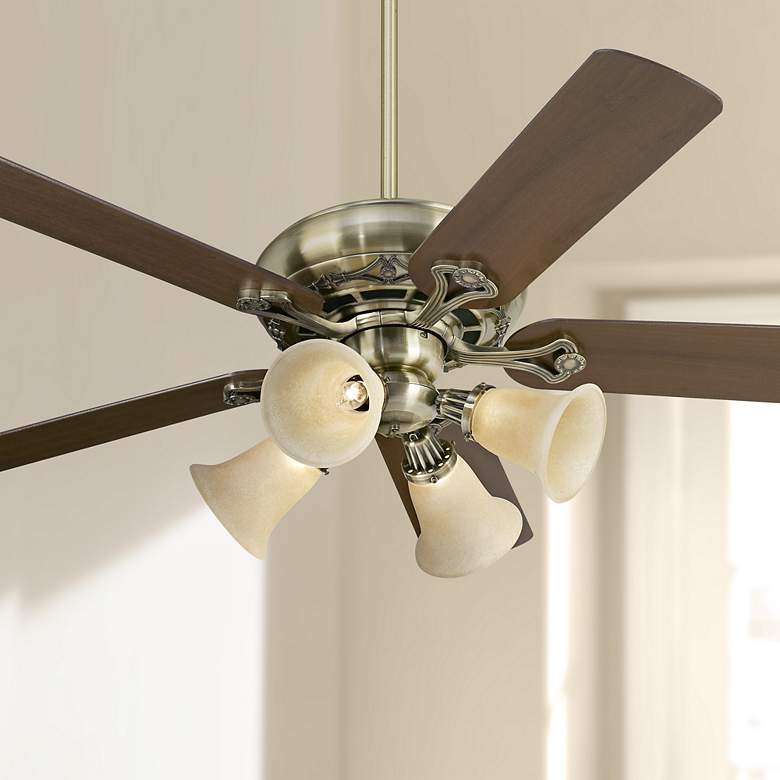

52" Casa Trilogy Brass and Amber Glass LED Ceiling Fan
For Information: 800-782-1967 or
- Antique brass finish motor.
- Five reversible walnut/cherry finish blades.
- 52" blade span.
- 12 degree blade pitch.
- 153 x 16 mm motor size.
- Dual mountable.
- Low profile adaptable.
- Three-speed pull chain operation.
- Light kit included.
- Includes four 6 watt candelabra base LED bulbs.
- Four amber glass bell shades.
- 4 1/2" downrod included.
- Fan height 12 1/2" blade to ceiling (with 4 1/2" downrod).
- Fan height 19" ceiling to bottom of light kit (with 4 1/2" downrod).
- Canopy is 5 1/4" wide x 2" high.
- Light is 10" wide x 4" high.
A clean and simple look for seating areas, kitchens and more. This dual mount ceiling fan comes with an antique brass Included is a four-light amber glass light kit, with energy-efficient LED bulbs. From the Trilogy™ collection by the Casa Vieja® brand. Deeper canopy (product R0107) is required for optional control.
Product Documents
Category | Features (Mouseover the underlined feature to review its benefits) |
---|---|
Optional Controls | 4F273 - Add-on wall control system for incandescent, CFL and LED |
Optional Controls | 4F256 - Hand Held Remote System for incandescent, CFL and LED |
Optional Controls | 4F289 - Add-on Hand Held Remote for incandescent, CFL and LED |
Speeds |
3 Speed
Allows Control of Air Movement: High, Medium, Low
|
Fan Name | 52" Casa Trilogy Brass LED Ceiling Fan |
Brand | Casa Vieja |
Finish | Antique Brass/Burnished Brass |
Motor Size | 153 x 16 |
Blade Pitch | 12° |
Blade Span |
52"
Suited to Large Rooms Over 12'
|
Blade Type | Reversible Blades |
Reverse Air Flow |
Manual Reverse
Save Energy in the Summer & Winter:
When Fan is Off, Flip Blade Direction Switch on Side of Switch Assembly (Location Varies by Model) to Change Seasonal Direction of Blades. Keep Cool Air Down in Summer With Counter Clockwise Air Flow during Winter, Operate Fan in Clockwise Direction to Keep Warm Air from Rising |
Mounting System |
Dual
Allows for mounting on high ceiling with down rod or on low ceiling with no down rod. (DUAL MOUNT SYSTEM MAY VARY BY FAN MODEL)
Fan can be mounted on vaulted or slanted ceiling up to 25° angle.* (*20° with receiver in canopy) |
Light Kit |
Kit Included Glass Extra |
Manufacturer's Warranty |
MFG. Limited Lifetime Motor Warranty + 1Yr Component Parts
Assurance of Quality Product
|
Weight | 20 |
Airflow | 4836 (High 2017 Tested) |
ElectricityUse | 69 (High 2017 Tested) |
AirflowEfficiency | 72 (High 2017 Tested) |
