52" Modern Forms Axis Matte White LED Wet Rated Smart Ceiling Fan
Return Policy
We stand behind the products we sell with a 60 day return policy. The process is easy, just contact us to receive an authorization number. Certain restrictions apply. You can read our complete policy in our help section.
** Recommended for standard installation. Please note: Metal blades must be mounted at least 10' from the floor.
- 52" blade span. 13-degree blade pitch. 125 x 20 mm DC motor size. Canopy is 6" wide. Maximum slope 30 degrees with included canopy.
- Integrated 20 watt LED module light, comparable to a 100 watt incandescent. 1,600 lumens. 3000K color temperature. Cap included for non-light use.
- Three matte white finish molded ABS blades. Matte white finish DC motor.
- Energy Star and Wet location rated. 6-speed, full-function Bluetooth hand-held remote. Smart fan capable with free Modern Forms iOS or Android app, or with Google Home, Amazon Alexa or Nest/Ecobee.
- 4 1/2" downrod included. 11" from ceiling to bottom of blades, 15" from ceiling to bottom of light (with 4 1/2" downrod).
Designed by Modern Forms, the Axis is a 52" LED ceiling fan featuring a DC motor and a sleek contemporary design. Created for the outdoors, this model boasts a beautiful matte white finish motor and three matching matte white finish ABS blades. Energy-efficient, this wet-rated ceiling fan comes with a 6-speed full function Bluetooth remote control; syncs with the Modern Forms app, or integrates with your smart home devices for voice command. This smart home ceiling fan can be controlled from your phone with iOS or Android Apps, or with voice command through Google Home or Amazon Alexa, or with Nest/Ecobee. (IMAP)
Product Documents
| Category | Features (Mouseover the underlined feature to review its benefits) |
|---|---|
| Speeds |
6 Speed
Allows Control of Air Movement
|
| Fan Name | 52" Modern Forms Axis Matte White LED Ceilling Fan |
| Finish | White |
| Motor Housing | Stamped Steel |
| Blade Pitch |
13°
Very Good Airflow
|
| Blade Span |
52"
Suited to Large Rooms Over 12'
|
| Blade Type | Not Reversible Blades |
| Reverse Air Flow |
Control Reverse
Save Energy in Summer & Winter:
When Fan is stopped, Wall or Hand Held Control will Seasonally Change Fan Direction. Keep Cool Air Down in Summer with Counter Clock Wise Air Flow. During the Winter, Operate Fan in Clock Wise Direction to Keep Warm Air from Rising. |
| Mounting System | Single |
| Light Kit |
Included/Integrated
Great Value for Customer.
Creates a Designer Look |
| Manufacturer's Warranty |
MFG. Limited Lifetime Motor Warranty + 1Yr Component Parts
Assurance of Quality Product
|
| Weight | 14 |

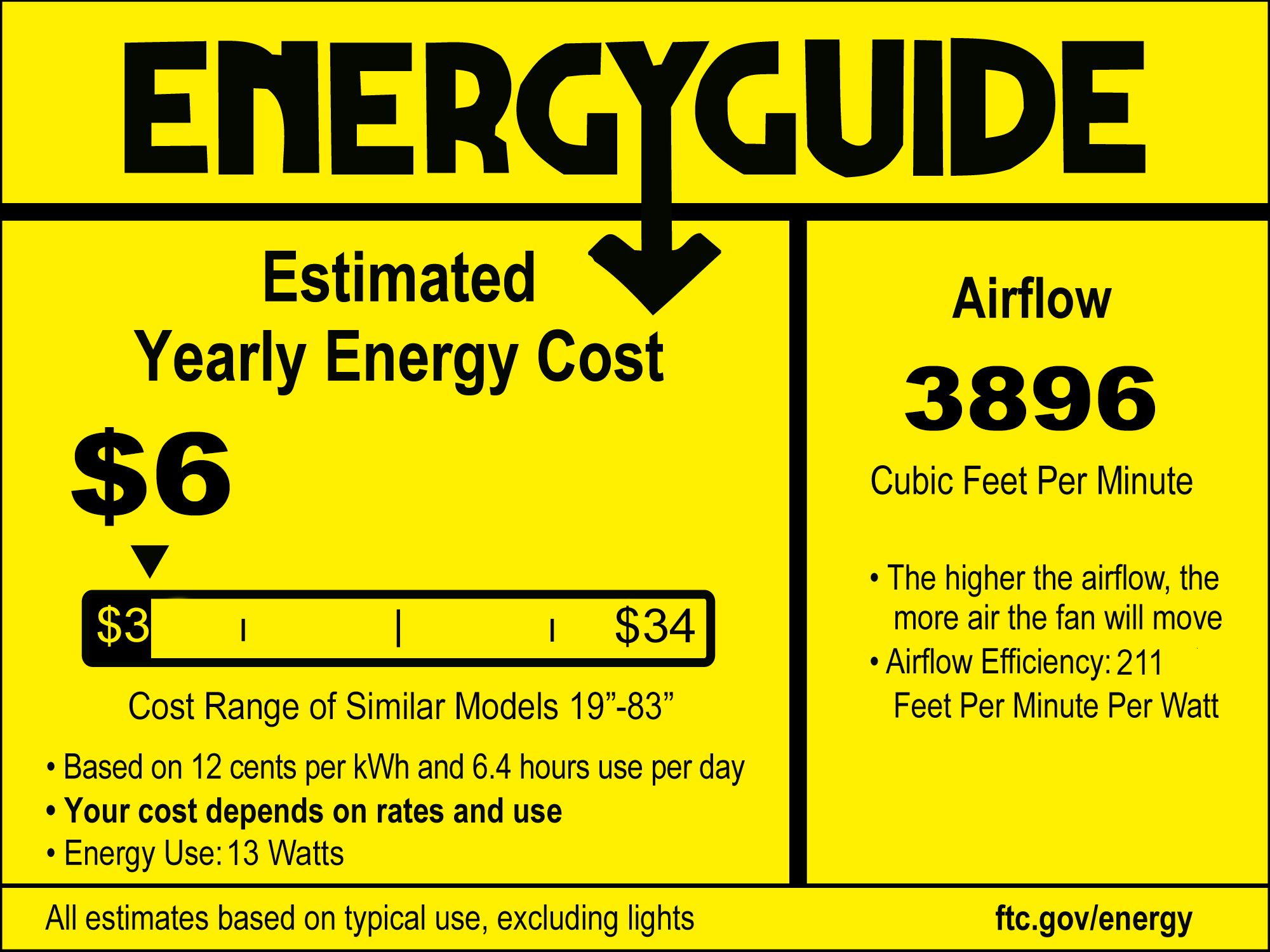

| Airflow | 3896 (Avg CFM) / 5695 (High CFM) |
| ElectricityUse | 13 (Avg Watt) |
| AirflowEfficiency | 211 (Avg Efficiency) |
| Other | Wet Location |
