54" Modern Forms Aviator Graphite 5-Blade Outdoor Smart Ceiling Fan
** Recommended for standard installation. Please note: Metal blades must be mounted at least 10' from the floor.
- Free Shipping & Free Returns*
Return Policy
We stand behind the products we sell with a 60 day return policy. The process is easy, just contact us to receive an authorization number. Certain restrictions apply. You can read our complete policy in our help section.
-
Need help? Call 800-782-1967or
- 54" blade span. 14-degree blade pitch. 125 x 20 mm DC motor size. Canopy is 6" wide. Maximum 30-degree ceiling slope with included canopy, 45-degrees with adapter (sold separately).
- Graphite finish motor. Five weathered gray finish molded ABS blades. Energy star rated ceiling fan.
- Wet rated for use in outdoor or indoor locations.

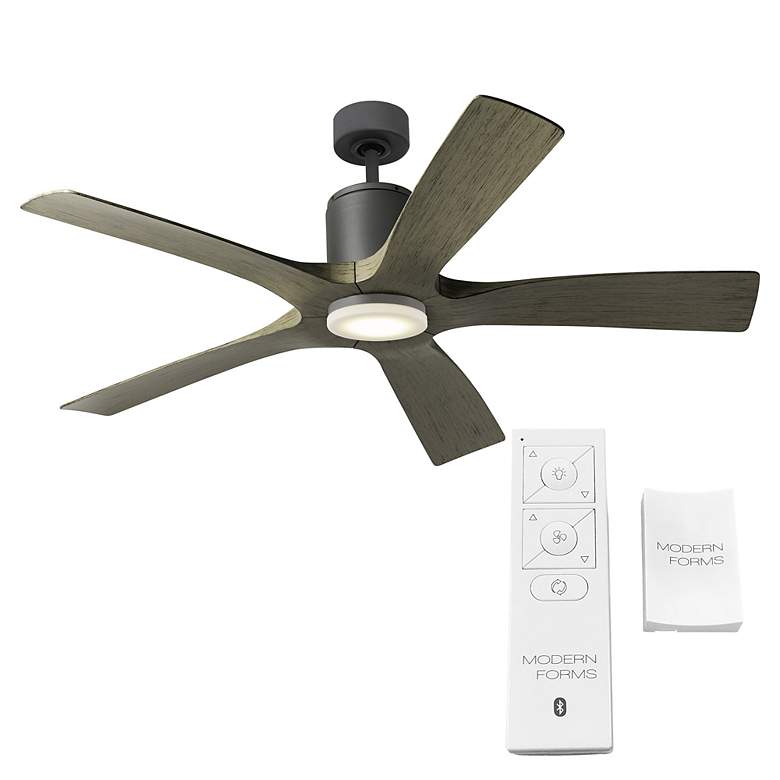

- Smart fan control with free Modern Forms App, or with voice command Google Home, Amazon Alexa or Nest/Ecobee. Also includes a six-speed full-function hand-held remote control.

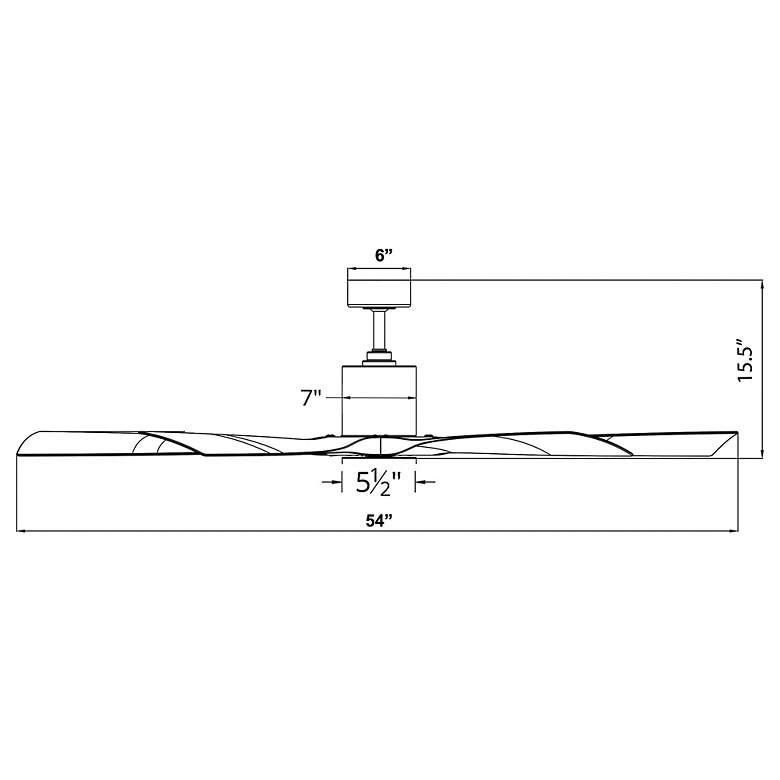

- 4 1/2" downrod included. Fan height is 15 1/2" ceiling to bottom of blades and fan (with 4 1/2" downrod). Minimum 9-foot ceiling height required.
With a weathered look inspired by the natural world, this ceiling fan is a wonderful addition to any outdoor space.
Additional Info:
With five weathered gray finish blades spanning 54 inches, and a sleek graphite finish motor and accents, this stylish outdoor ceiling fan delivers a comfortable flow of air as it completes a pleasant design motif. This fan from the Aviator collection by Modern Forms operates with a blue tooth hand-held remote control; syncs with the Modern Forms app, or integrates with your smart home devices for voice command. This smart home ceiling fan can be controlled from your phone with iOS or Android Apps, or with voice command through Google Home or Amazon Alexa, or with Nest/Ecobee. (IMAP)
Product Documents
| Category | Features (Mouseover the underlined feature to review its benefits) |
|---|---|
| Speeds |
6 Speed
Allows Control of Air Movement
|
| Fan Name | 54" Aviator Graphite 5-Blade Outdoor Ceiling Fan |
| Finish | Iron/Graphite/Rustic Iron |
| Motor Housing | Stamped Steel |
| Blade Pitch |
14°
Very Good Airflow
|
| Blade Span |
54"
Suited to Large Rooms Over 12'
|
| Blade Type | Not Reversible Blades |
| Reverse Air Flow |
Control Reverse
Save Energy in Summer & Winter:
When Fan is stopped, Wall or Hand Held Control will Seasonally Change Fan Direction. Keep Cool Air Down in Summer with Counter Clock Wise Air Flow. During the Winter, Operate Fan in Clock Wise Direction to Keep Warm Air from Rising. |
| Mounting System | Single |
| Light Kit | Light Kit Optional |
| Manufacturer's Warranty |
MFG. Limited Lifetime Motor Warranty + 1Yr Component Parts
Assurance of Quality Product
|
| Weight | 23 |
| Airflow | 5638 (Avg CFM) / 8418 (High CFM) |
| ElectricityUse | 24 (Avg Watt) |
| AirflowEfficiency | 368 (Avg Efficiency) |
| Other | Wet Location |
