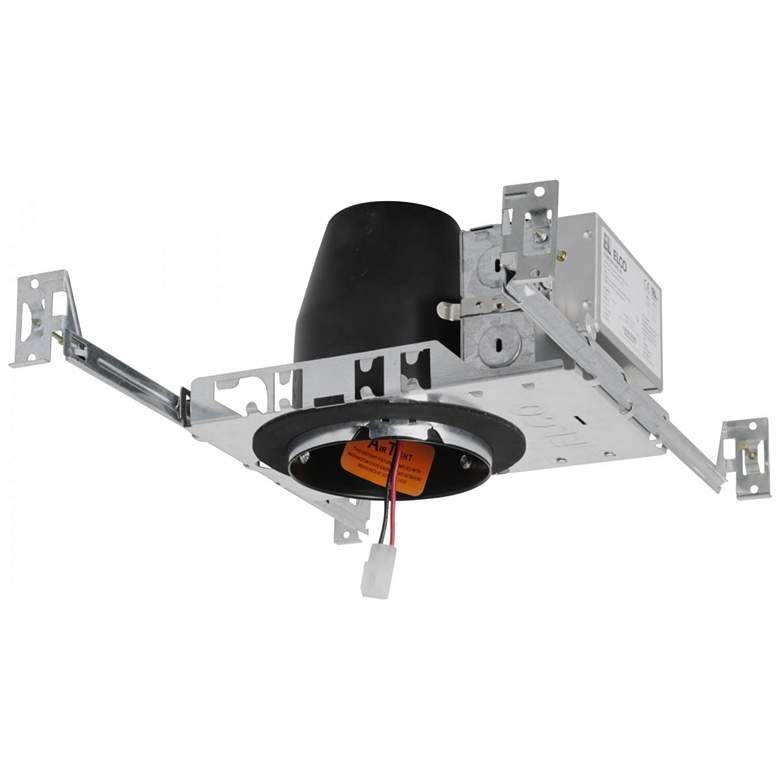

Image 1 Cedar System 4" Non-IC New Construction LED Housing w/Driver

Cedar System 4" Non-IC New Construction LED Housing w/Driver


Product Not Available

For Information: 800-782-1967

Notify me when this becomes available:

Plus you'll get great deals & offers to your inbox!
Product Details
  • 9" wide x 6" deep x 5 1/2" high.
  • 4 1/4" ceiling cutout.
  • Cedar System new construction non-IC housing with driver from Elco Lighting.
  • For use with Elco Cedar System 4" LED light engines. 850 lumen light output, comparable to a 60 watt incandescent. 120V-277V input.
  • Dimmable with TRIAC, ELV, or 0-10V dimmer.
  • Designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing.
  • Rated for damp locations.
  • Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
  • High efficiency driver with a power factor > 0.95.
  • ENERGY STAR® rated. Title 24 compliant.
  • Compatible with Elco recessed lighting items.

Plan well for a lighting project with this four-inch new construction non-IC housing with driver. Elco Lighting offers a component for light engines from its Cedar system with 850 lumen light output, comparable to a 60 watt incandescent. Dimmable with separately purchased TRIAC, ELV, or 0-10V dimmers, it offers lighting level flexibility as well as LED energy-efficiency. Title 24 compliant and rated for damp locations.

Shop all Elco Lighting

Product Attributes
Style Number 41G05
Color Silver
Type New Construction
Brand Elco Lighting
Usage Housing
Technical Specifications
Height 5.50 inches
UPC Code 633999025992
Manufacturer Number E4LC08D
