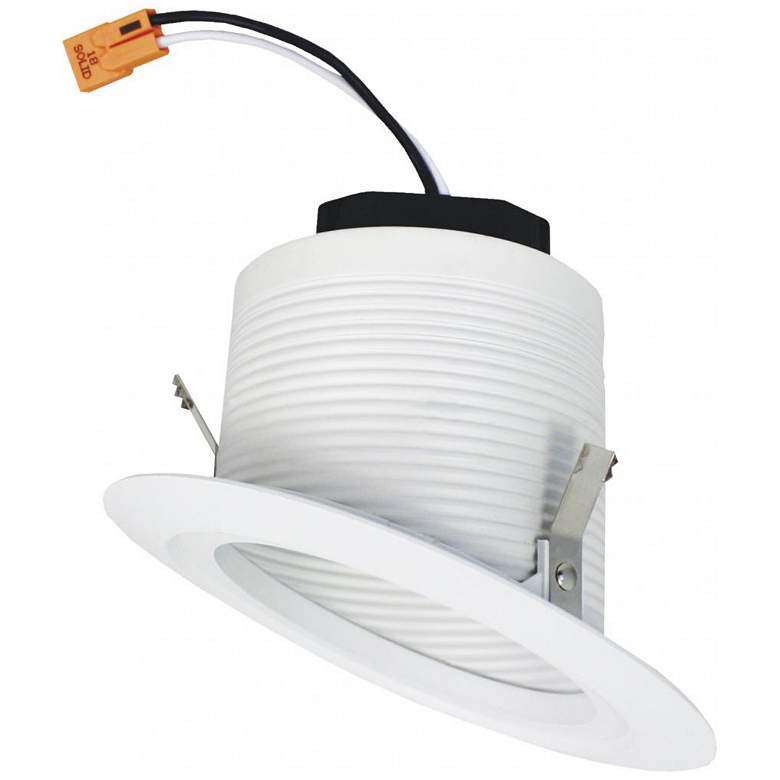

Elco 4" White Sloped Ceiling LED Baffle Recessed Downlight
For Information: 800-782-1967
- 6" wide x 4 1/4" high. 3 3/4" aperture.
- Built-in dimmable 12 watt LED module. 900 lumen light output, comparable to a 60 watt incandescent. 3000K color temperature. 90+ CRI.
- Energy-efficient LED sloped ceiling baffle recessed downlight by Elco Lighting.
- Powder-coated white finish. Frosted polycarbonate lens. Line voltage - 120V AC.
- Dimmable with most standard Triac or ELV (electronic low voltage) dimmers.
- LED averages 50,000 hours at 3 hours per day.
- UL listed for damp locations. California T24 (JA8-2016-E) compliant.
- Integral gimbal for 25-degree adjustability.
- Designed to install into Elco 4" Sloped ceiling housing with torsion springs brackets.
This energy-efficient LED sloped ceiling baffled recessed downlight is designed for installation in Elco Lighting Systems. This four-inch sloped ceiling housing features a powder-coated white finish with a frosted polycarbonate lens. UL listed for damp locations, it offers integral gimbal for an approximate 25-degree adjustability. This light is dimmable with the separate purchase of most standard Triac or ELV dimmers.
Specifications
Style Number | 41G06 |
---|---|
Finish | White |
Color | White - Ivory |
Type | Sloped Ceiling |
Brand | Elco Lighting |
Usage | Trim |
UPC Code | 633999021574 |
---|---|
Manufacturer Number | EL42330W |
Product Documents
call us at 800-782-1967
select one of the options below:
6 3/4" high. 4 1/4" wide aperture. Energy-efficient LED sloped ceiling IC-rated airtight new construction recessed housing by Elco Lighting. Aluminum housing. Stamped galvanized steel frame. 120V input. 14 watts. IC-rated for use in direct contact with ceiling insulation. UL listed for damp locations and feed through. California T24 (JA8-2016-E) compliant. For installation in sloped ceilings ranging from 2/12 (10-degree) to 6/12 (26.5-degree). Housing adjusts to accommodate up to 3/4" ceiling thickness. Fits in 2" x 8" joist construction. Compatible with Elco recessed lighting items.
View more details
Housing (41G04): Trim (41G06): Total Price: |
$39.99 $73.99 $113.98 |
6 3/4" high. 4 1/4" wide aperture. Energy-efficient LED sloped ceiling IC-rated airtight remodel recessed housing by Elco Lighting. Aluminum construction. 120V input. 14 watts. IC-rated for use in direct contact with ceiling insulation. UL listed for damp locations and feed through. California T24 (JA8-2016-E) compliant. For installation in sloped ceilings ranging from 2/12 (10-degree) to 6/12 (26.5-degree). Housing adjusts to accommodate up to 3/4" ceiling thickness. Fits in 2" x 8" joist construction. Compatible with Elco recessed lighting items.
View more details
Housing (83D26): Trim (41G06): Total Price: |
$39.99 $73.99 $113.98 |
