Open Box

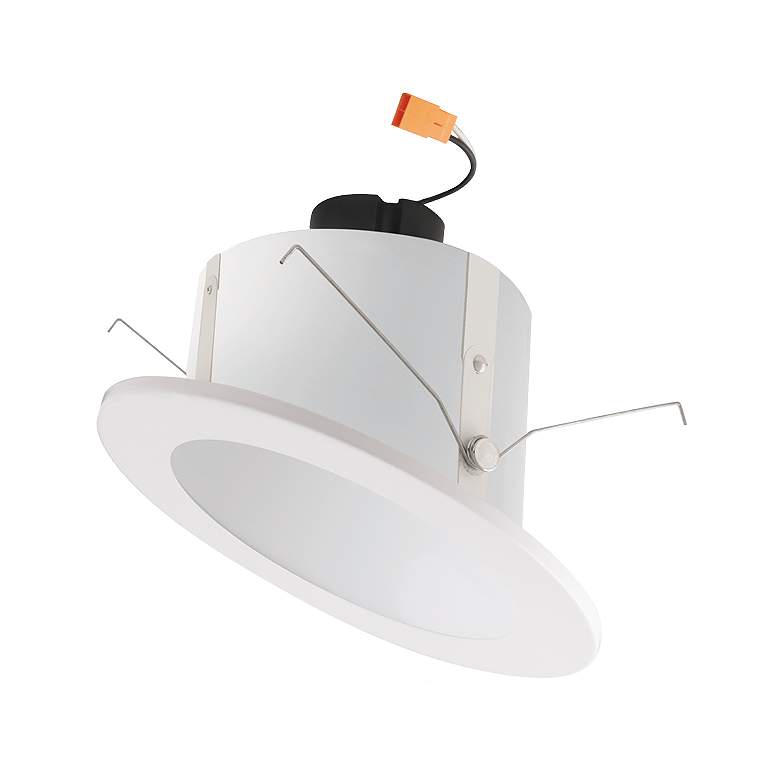

Elco 6" White Sloped Ceiling 2700K LED Reflector Downlight
For Information: 800-782-1967
- 8" wide x 7 3/4" deep x 6" high.
- Built-in dimmable 15 watt LED module. 1050 lumen light output, comparable to a 75 watt incandescent. 2700K color temperature. 90+ CRI.
- Energy-efficient LED sloped ceiling reflector recessed downlight by Elco Lighting.
- Powder-coated white finish. Frosted polycarbonate lens. Line voltage - 120V AC.
- Dimmable with most standard Triac or ELV (electronic low voltage) dimmers.
- LED averages 50,000 hours at 3 hours per day.
- UL listed for damp locations. ENERGY STAR® rated. California T24 (JA8-2016-E) compliant.
- Integral gimbal for �25-degree adjustability.
- Designed to install into Elco 6" Sloped ceiling housing with torsion springs brackets.
This LED sloped ceiling reflector downlight is designed for installation in Elco Lighting six-inch sloped ceiling housing with torsion springs brackets. Powder coated white in finish, it features a frosted polycarbonate lens. This light is dimmable with the separate purchase of most standard Triac or ELV dimmers, and offers a color rating of 2700K. Energy-efficiency yields an average of 50,000 hours at three hours of average daily usage.
Specifications
| Style Number | 83D29 |
|---|---|
| Finish | White |
| Color | White - Ivory |
| Type | Sloped Ceiling |
| Brand | Elco Lighting |
| Usage | Trim |
| Height | 6.00 inches |
|---|---|
| UPC Code | 633999017393 |
| Manufacturer Number | EL71527W |
Product Documents
call us at 800-782-1967
select one of the options below:
12 1/2" wide x 9" deep x 7" high. 7" wide x 6 1/2" deep aperture. Energy-efficient LED sloped ceiling IC-rated airtight new construction recessed housing by Elco Lighting. Aluminum housing. Stamped galvanized steel frame. 120V or 277V input. 24 watts. IC-rated for use in direct contact with ceiling insulation. UL listed for damp locations and feed through. California T24 (JA8-2016-E) compliant. For installation in sloped ceilings ranging from 2/12 (10-degree) to 6/12 (26.5-degree). Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness. Fits in 2" x 8" joist construction. Compatible with Elco recessed lighting items.
View more details
|
Housing (41G03): Trim (83D29): Total Price: |
$39.99 $119.99 $159.98 |
16" wide x 7" high. 6 3/4" wide x 6 1/2" deep aperture. Energy-efficient LED sloped ceiling IC-rated airtight remodel recessed housing by Elco Lighting. Aluminum construction. 120V or 277V input. 24 watts. IC-rated for use in direct contact with ceiling insulation. UL listed for damp locations and feed through. California T24 (JA8-2016-E) compliant. For installation in sloped ceilings ranging from 2/12 (10-degree) to 6/12 (26.5-degree). Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness. Fits in 2" x 8" joist construction. Compatible with Elco recessed lighting items.
View more details
|
Housing (83D27): Trim (83D29): Total Price: |
$39.99 $119.99 $159.98 |
