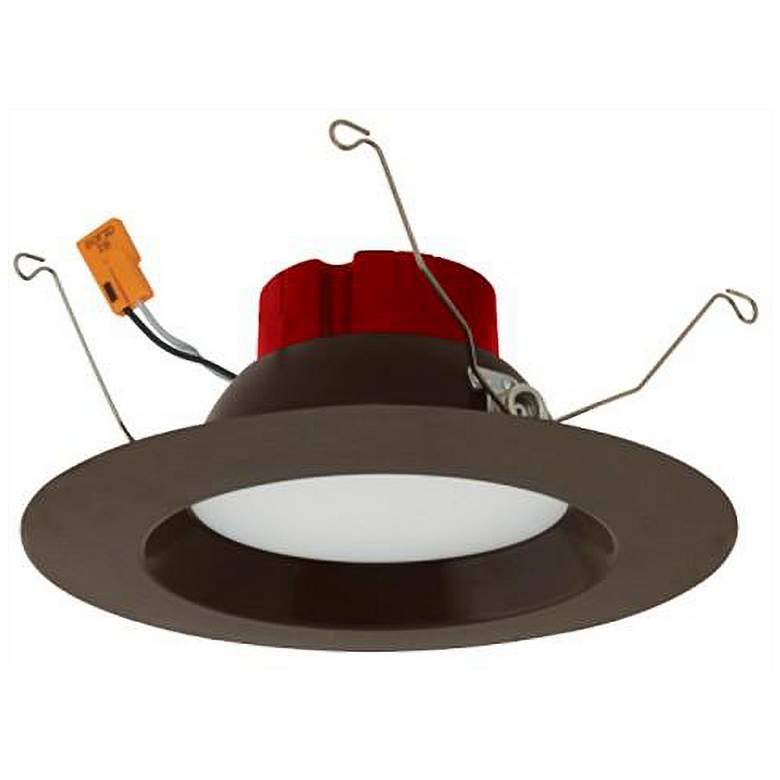

Jana 5" Bronze Five-Color Temperature LED Reflector Downlight
- Ships Free with Orders Over $49*
Return Policy
We stand behind the products we sell with a 60 day return policy. The process is easy, just contact us to receive an authorization number. Certain restrictions apply. You can read our complete policy in our help section.
-
Need help? Call 800-782-1967or
- 7 1/4" wide x 3" high. 5" aperture.
- Round energy-efficient LED reflector insert recessed downlight by Elco Lighting.
- Built-in dimmable 12 watt LED module. 850 lumen light output, comparable to a 65 watt incandescent. 2700K, 3000K, 3500K, 4000K, 5000K color temperature settings. 90+ CRI.
- Bronze finish over aluminum construction. Soft white lens. Line voltage - 120V.
- Dimmable with Triac or ELV dimmer.
- LED averages 50,000 hours at 3 hours per day.
- CA Title 24 compliant. ENERGY STAR® rated. JA8-2016-E rated.
- Switch from a 2700K to 5000K by using manual switch on driver.
- Compatible with Elco recessed lighting items.
Dimming options enhance this five-inch round white five-color LED reflector insert recessed downlight.
Additional Info:
Energy-efficient and customized for modern applications, this five-inch round white LED reflector insert recessed downlight offers a built-in dimmable 12 watt LED module. Elco Lighting offers this white finish insert downlight with 850 lumen light output, comparable to a 65 watt incandescent. Features five different color setting temperatures. Die-cast aluminum construction. Dimmable with the separate purchase of Triac or ELV dimmer.
Specifications
| Style Number | 284D0 |
|---|---|
| Color | Brown |
| Type | Retrofit |
| Brand | Elco Lighting |
| Usage | Trim |
| UPC Code | 633999173945 |
|---|---|
| Manufacturer Number | EL615CT5BZ |
Product Documents
or call us at 800-782-1967
select one of the options below:
14 1/4" wide x 5 1/2" high. 6 1/2" aperture. IC-rated airtight shallow remodel housing for LED insert by Elco Lighting. Aluminum housing. 120V input. IC-rated for use in direct contact with ceiling insulation. Title 24 compliant. ENERGY STAR® Certified. Compatible with Elco recessed lighting items. Trims and inserts sold separately.
View more details
|
Housing (2T141): Trim (284D0): Total Price: |
$19.99 $35.99 $55.98 |
14 1/4" wide x 7 1/2" high. 6 1/2" aperture. IC-rated airtight dedicated remodel recessed housing for LED insert by Elco Lighting. Aluminum housing. 120/277V input. 24 watts. IC-rated for use in direct contact with ceiling insulation. Title 24 compliant. ENERGY STAR® Certified. Compatible with Elco recessed lighting items. Trims and inserts sold separately.
View more details
|
Housing (407V0): Trim (284D0): Total Price: |
$19.99 $35.99 $55.98 |
9 1/2" wide x 7" high. 6 1/4" aperture. IC-rated airtight dedicated new construction recessed housing for LED insert by Elco Lighting. Aluminum housing. 120/277V input. 24 watts. IC-rated for use in direct contact with ceiling insulation. Title 24 compliant. ENERGY STAR® Certified. Compatible with LED inserts. Compatible with Elco recessed lighting items. Trims and inserts sold separately.
View more details
|
Housing (78A69): Trim (284D0): Total Price: |
$19.99 $35.99 $55.98 |
9 1/2" wide x 5 1/2" high. 6 1/4" aperture. IC-rated airtight shallow new construction housing for LED insert by Elco Lighting. Aluminum housing. 120V input. IC-rated for use in direct contact with ceiling insulation. Title 24 compliant. ENERGY STAR® Certified. Compatible with Elco recessed lighting items. Trims and inserts sold separately.
View more details
|
Housing (82D25): Trim (284D0): Total Price: |
$19.99 $35.99 $55.98 |
