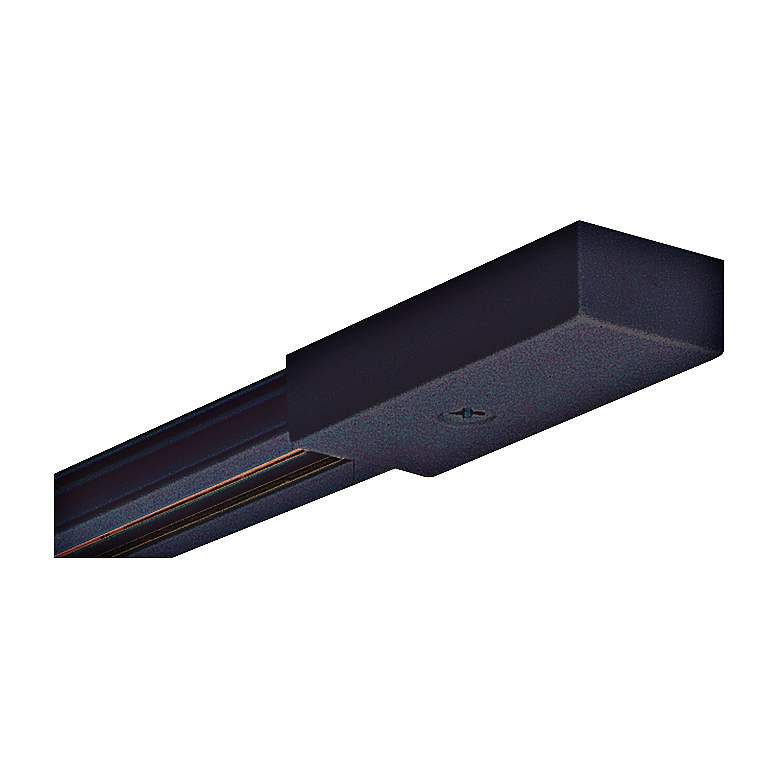

Juno Trac 12 Black 4' Mini 20A Low Voltage Track Section

- Style # 27517
$30.99
  • Ships Free with Orders Over $49*
  • Low Price Guarantee

Start with this black track section then choose a Juno lampholder and accessories to create a wonderful new lighting system in your home.

More Details >
Houzz
Juno Trac 12 Black 4' Mini 20A Low Voltage Track Section
Juno Trac 12 Black 4&#39; Mini 20A Low Voltage Track Section
Product Details

This black, four-foot long, ultra-miniature single-circuit low voltage track lighting section accepts all Trac 12 cove, accent and pendant lampholders. Rated 20 amps for operation with 12 or 24 volt step-down transformer. Made of strong, heat-resistant extruded ABS/polycarbonate, featuring an injection-molded integral terminal block feed/straight connector, and compatible with right-angle or adjustable joiner and conduit/J-box mounting accessories (sold separately). Terminal block connector accepts up to 10-gauge solid secondary feed wire or connects to additional section. Toggle bolts included for surface mounting. Use with TL34 conduit adapter or TL21 outlet box canopy for Class 1 installations over 60VA. Compatible with all Juno Trac 12 accessories.

  • 4' ultra-miniature single-circuit track section.
  • Rated 20 amps at 12 or 24 volts.
  • Black finish.
  • Accepts all Juno Trac 12 cove, accent and pendant lampholders.
  • Extruded ABS/polycarbonate construction.
  • Injection-molded terminal block end-feed/straight connector with cover.
  • Compatible with right-angle and/or adjustable joiners, and conduit/J-box mounting accessories (all sold separately).
  • Cuttable to length by installer.
  • Two 12-gauge solid copper conductors.
  • Injection-molded dead-end with set screw.
  • Use with TL34 conduit adapter or TL21 outlet box canopy for installations over 60VA.
  • UL-listed, CSA certified.
  • 20 5/8" wide.
  • End-feed is 3/4" wide, 3/8" high.
