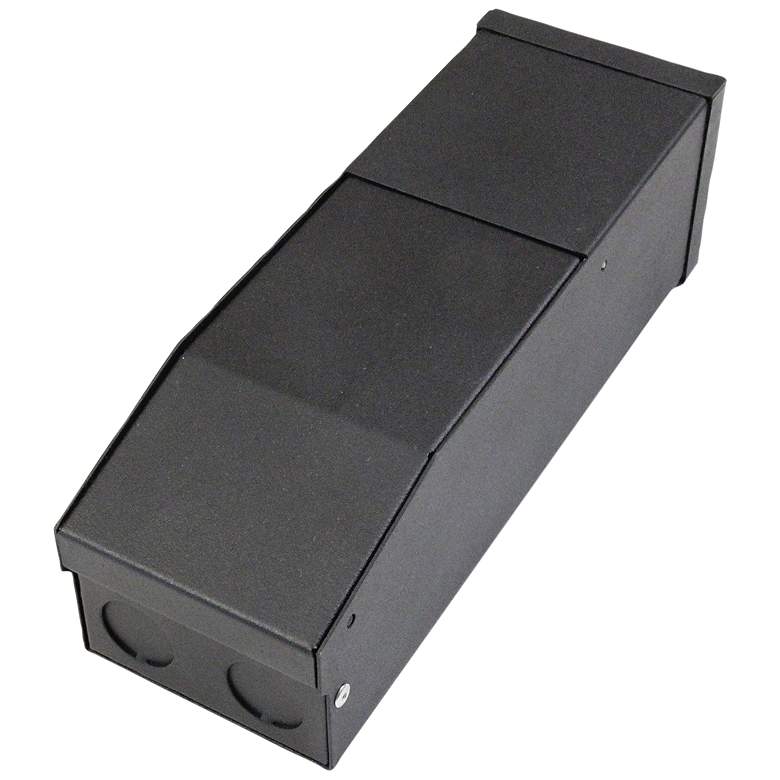

Kelvin 1.98" Wide Black 24VDC 30W LED Dimmable Power Supply
For Information: 800-782-1967 or
- 6.03" wide x 1.98" deep x 1.43" high.
- Class II hardwire 24VDC energy-efficient LED magnetic dimmable power supply by SlimEdge™.
- Black powder-coated.
- Transformer is encapsulated in all metal construction enclosure. Enclosure temperature should not exceed 70-degree C (158-degree F) @ 40-degree C (104-degree F) ambient.
- Wiring compartment has two knockouts sized for 3/4" screw cable connectors.
- Removable cover for wiring compartment is secured in place by clips and one screw.
- Input and output terminals are terminal block.
- Input leads are 20 AWG. Output leads are 16 AWG.
- Lead insulation rated to 105-degree C (221-degree F). Transformer utilizes a class B 130-degree C (266-degree F) insulation system.
- Max wattage is 30 watts. Output is 24V.
- Works with low-voltage magnetic wall dimmer with on-off switch.
- No minimum load requirements for this transformer/driver.
- Coil former is double section bobbin. Auto reset.
- Surface mount with front mounting tab.
- ETL listed for indoor and outdoor use.
By SlimEdge™, this magnetic dimmable power supply utilized LEDs for energy-efficiency. A black powder-coated finish and all-metal enclosure construction combined with a maximum load of 30 watts ensure seamless style and optimal under cabinet lighting. This power supply delivers a 24-volt output. Additionally, the power supply is ETL listed for indoor and outdoor use, adding versatility for placement within a backyard entertaining space.
| Finish | Black |
|---|---|
| Type | Direct Wire |
| Color | Black |
| Manufacturer Number | LTHM30-DIM-24 |
|---|
