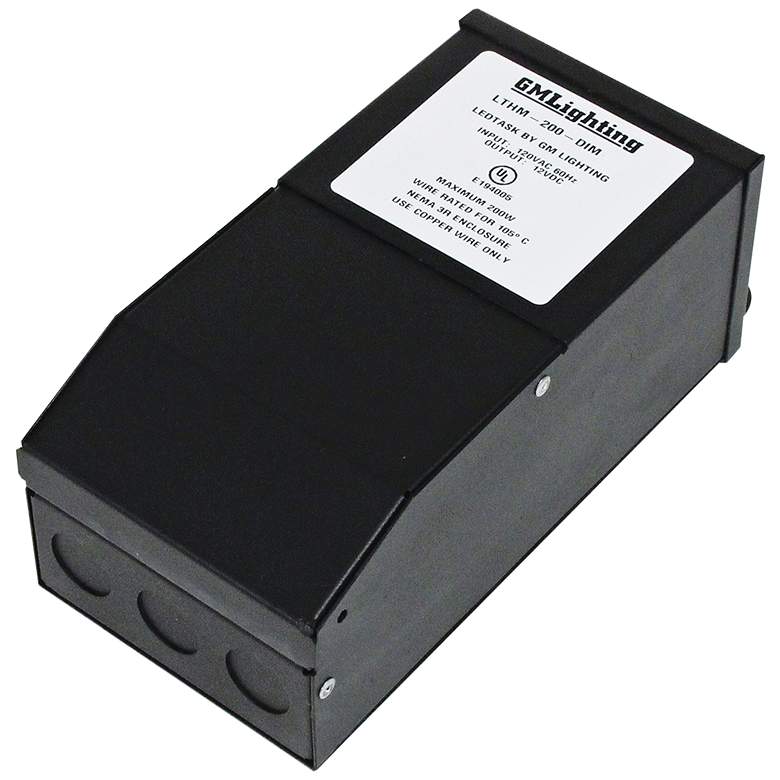

Image 1 Kelvin 4 inch Wide Black 12V 200W LED Dimmable Power Supply

Kelvin 4" Wide Black 12V 200W LED Dimmable Power Supply


This product has been discontinued and is not available.

For Information: 800-782-1967 or

Product Details
  • 4" wide x 10" deep x 3" high.
  • Hardwire 12V energy-efficient LED magnetic dimmable power supply by SlimEdge™.
  • Black powder-coated.
  • Transformer is encapsulated in all metal NEMA 3R rated enclosure. Enclosure temperature should not exceed 70-degree C(158-degree F)@ 40-degree C(104-degree F) ambient.
  • Wiring compartment has three knockouts sized for 3/4" screw cable connectors.
  • Wiring compartment cover is hinged with rivets and opens vertically from bottom to top.
  • Thermal class B-130C. Input leads are 18 AWG. Output leads are 12 AWG.
  • Lead insulation rated to 105-degree C (221-degree F). Transformer utilizes a class B 130-degree C (266-degree F) insulation system.
  • Maximum load is 200 watts. Output is 12V.
  • Works with low-voltage magnetic wall dimmer with on-off switch.
  • No minimum load (can be fully loaded).
  • Coil former is double section bobbin. Auto reset thermal circuit breaker on the secondary side.
  • Surface mount with front mounting tab.
  • UL listed.

By SlimEdge™, this magnetic dimmable power supply utilized LEDs for energy-efficiency. A black powder-coated finish and all-metal enclosure construction combined with a maximum load of 200 watts ensure seamless style and optimal under cabinet lighting. This power supply delivers a 12-volt output. Additionally, the power supply works with a low-voltage magnetic wall dimmer with an on-off switch.

Specifications

Product Attributes
Finish Black
Type Direct Wire
Color Black
Voltage Low Voltage 12v
Technical Specifications
Manufacturer Number LTHM200-DIM
