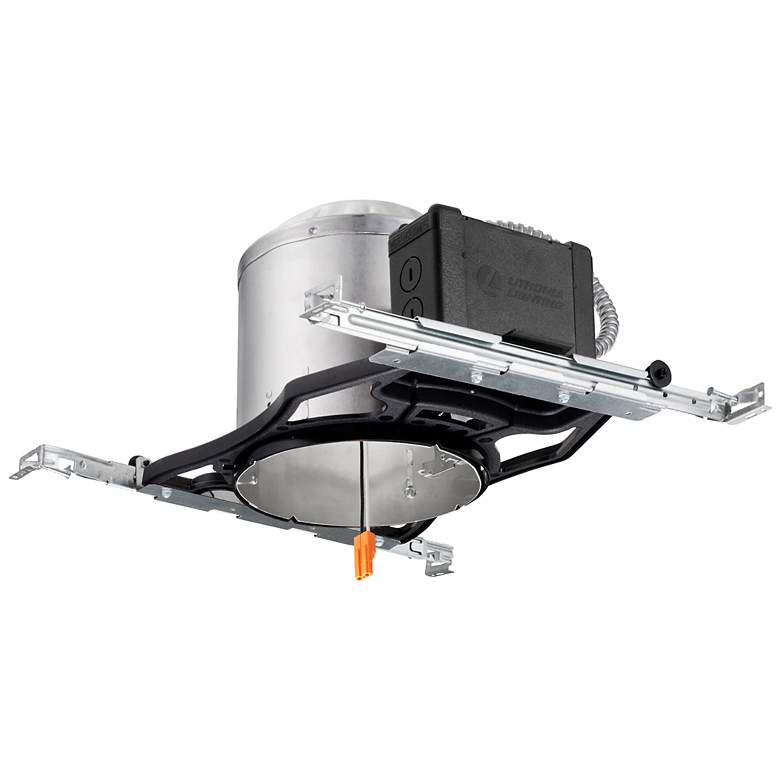

Image 1 Lithonia 6" LED IC/Non-IC New Construction/Remodel Housing

Lithonia 6" LED IC/Non-IC New Construction/Remodel Housing


This product has been discontinued and is not available.
Product Details
  • 6" LED IC/non-IC recessed light housing for new construction or remodel applications.
  • Air tight aluminum housing.
  • Galvanized bar hangers span up to 24".
  • Ground wire and tilt-up captive J-box door provided.
  • 120 volt only.
  • 2" x 8" wood joist or T-bar installation.
  • Vertical adjustment allows flush-mounting with ceiling face.
  • Suitable for ceilings up to 1 1/2" thick.
  • UL-rated and listed for damp locations; Title 24-compliant.
  • Can be made Wet Location rated by use of a lensed reflector.
  • Compatible with Lithonia Lighting recessed products.
  • 9" wide.
  • 13" deep.
  • 7" high.
  • Ceiling cut-out 7 1/8".

This 6" LED airtight aluminum standard recessed housing is rated IC or non-IC and is for use in remodel or new construction applications. Approved for all ceiling types (except air-handling plenums) and for direct burial in insulation. Galvanized bar hangers expand up to 24" and feature stepped-shank nail and positioning guide with integral T-bar locks and 2 locking screws to hold fixture into position. Ground wire provided, and tilt-up J-box door allows easy access. Quick disconnect provided for power connection to the LED module. Expandable hangers allow off-center mounting in wood joist or T-bar ceilings. Maximum width 25 1/2", minimum width 13 1/4", or cut to fit 5 9" on center joist construction. Vertical adjustment of housing allows for flush-mounting with ceiling face. UL-listed and rated for wet location; Title 24-compliant. Compatible with Lithonia Lighting recessed light products.

Shop all Lithonia

Product Attributes
Style Number 5G700
Finish Silver
Color Silver
Type Shower Lights
Brand Lithonia
Usage Housing
Technical Specifications
UPC Code 745973144121
Manufacturer Number 202JV5
