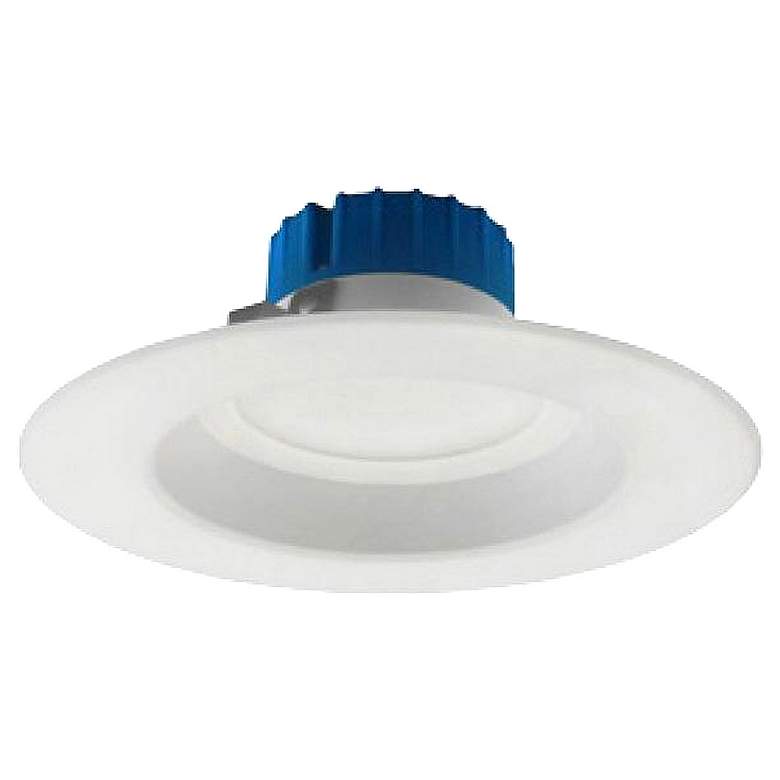

Nicor DLR 5"/6" White 12 Watt LED Retrofit Downlight
For Information: 800-782-1967
- 7 1/2" wide x 2 3/4" high.
- Nicor LED recessed retrofit downlight.
- Includes one 12 watt dimmable standard base LED module: 806 lumen output, comparable to a 90 watt incandescent. 5000K. 91 CRI.
- LED averages 50,000 hours at 3 hours per day.
- 120V; 12 watts.
- UL listed for use in wet locations. Energy star qualified.
- Compatible with most 5/6" housing as well as Nicor brand recessed lighting housings.
- Dimmable to 10%.
This 12-watt LED recessed retrofit downlight delivers a stylish presence to any ceiling. Enjoy a sleek and clean white finish that meshes beautifully with surrounding decor. Compatible with standard five-inch and six-inch remodel and new construction housings, its versatility and ease of installation make it a solid choice. Compatible with most 5/6" housing as well as Nicor brand recessed light housings.
Specifications
Style Number | 1R908 |
---|---|
Finish | White |
Type | Retrofit |
Brand | Nicor |
Usage | Trim |
Manufacturer Number | DLR56-3008-120-5K-WH |
---|
Product Documents
call us at 800-782-1967
select one of the options below:
Part of the economy line from Juno Lighting, this line voltage recessed light housing Juno Lighting offers the great performance features of the standard line. It has a single wall new construction non-perforated aluminum housing and is air-loc ready. May be covered with insulation. 7 1/8" high. 7 3/4" wide. 13" long. 6 7/8 ceiling cutout.
View more details
Housing (02474): Trim (1R908): Total Price: |
$19.99 $28.89 $48.88 |
12" wide x 5 1/2" deep x 4 3/4" high. Weighs 1.35 lbs. 5 1/2" height allows use in 2" x 6" joist construction. Remodel energy-efficient LED airtight housing from Nicor. Takes one maximum 20 watt LED bulb (not included). Standard neutral finish; aluminum construction provides greater heat dissipation. 120V. IC-rated for use in direct contact with ceiling insulation. Airtight housing provides increased energy efficiency through room insulation. UL and cUL listed for damp location. Features a universal IDEAL connector that allows for quick, snap-in connection to Nicor LED downlights and helps improve light efficiency and quality. Supplied with three push-in wire connectors. Listed for through-branch circuit wiring and includes several 3/4" knockouts. Suitable for residential and commercial applications.
View more details
Housing (18H17): Trim (1R908): Total Price: |
$23.99 $28.89 $52.88 |
14 1/4" wide x 10 1/4" deep x 5 1/2" high. Weighs 1.9 lbs. Housing adjusts from 1/2" to 1 1/2" to accommodate ceiling thickness. New construction energy-efficient LED airtight housing from Nicor. Takes one maximum 20 watt LED bulb (not included). Standard neutral finish; aluminum construction provides greater heat dissipation. 120V. IC-rated for use in direct contact with ceiling insulation. Airtight housing provides increased energy efficiency through room insulation. UL and cUL listed for damp location. Title 24 Compliant. Features a universal IDEAL connector that allows for quick, snap-in connection to Nicor LED downlights and helps improve light efficiency and quality. Supplied with three push-in wire connectors. Listed for through-branch circuit wiring and includes several 3/4" knockouts. Heavy-gauge Nicor captive hanger bars provide greater stability. Exclusive hanger bar lip design helps align can to joist. Four double-headed captive nails provide f
View more details
Housing (1G987): Trim (1R908): Total Price: |
$25.99 $28.89 $54.88 |
From Juno Lighting comes this line voltage IC remodeling recessed light housing. The housing features an air-loc ready aluminum housing. This light housing may be covered with insulation. 7 1/2" high. 5 7/8" wide. 12 1/2" long. 5 1/2" ceiling cutout.
View more details
Housing (23618): Trim (1R908): Total Price: |
$25.99 $28.89 $54.88 |
Recessed housing for remodel application where back side of ceiling is not accessible. Installed through an opening in the ceiling from below. Design for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing. To be used with Juno Lighting recessed light trim. 7 5/16" wide. 7 1/4" high. 13 3/4" long. 6 3/4" ceiling cutout.
View more details
Housing (41551): Trim (1R908): Total Price: |
$24.99 $28.89 $53.88 |
