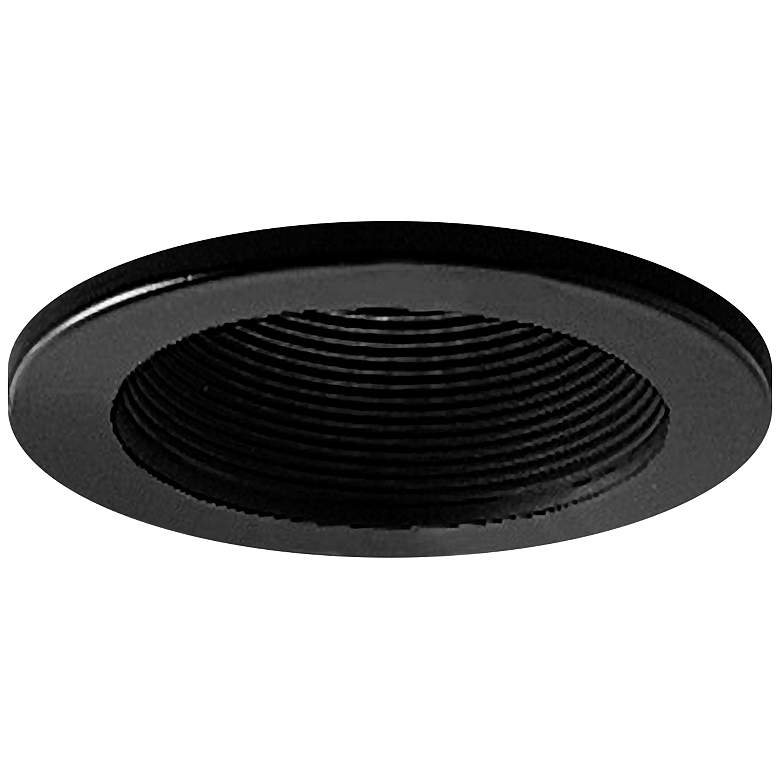

Nora 4" Black Adjustable Stepped Baffle Trim
- Ships Free with Orders Over $49*
Return Policy
We stand behind the products we sell with a 60 day return policy. The process is easy, just contact us to receive an authorization number. Certain restrictions apply. You can read our complete policy in our help section.
-
Need help? Call 800-782-1967or
- 5" wide x 2" high.
- Aperture is 3 1/2" wide. Compatible with 4" recessed housings.
- Adjustable stepped baffle recessed light trim by Nora Lighting.
- Takes one maximum 50 watt 12V MR16 bulb (not included).
- Black finish trim. Aluminum stepped baffle.
- 35-degree adjustable gimbal ring.
- Low voltage.
- Includes three clips to mount trim in housing.
- Damp location rated when used with compatible Nora lighting housing.
- For use with non-IC new construction, IC airtight new construction, and non-IC airtight remodel Nora Lighting recessed housings.
- Housing not included.
With a 35-degree adjustable gimbal, this four-inch black stepped baffle recessed lighting trim gives you plenty of options.
Additional Info:
Polish the look of your ceiling lights with this adjustable recessed lighting trim in black. The gimbal ring allows the lamp to be mounted on top of the trim with a 35-degree adjustability. Made of aluminum with deep grooves to reduce aperture glare, the trim includes three clips that securely mount into the housing. Use with non-IC new construction, IC airtight new construction, and non-IC airtight remodel housings. For use with Nora Lighting recessed products.
Specifications
| Style Number | 90494 |
|---|---|
| Finish | Black |
| Color | Black |
| Type | Gimbal - Adjustable |
| Brand | Nora Lighting |
| Usage | Trim |
| Height | 2.00 inches |
|---|---|
| UPC Code | 732180403424 |
| Manufacturer Number | NL-411B |
Product Documents
or call us at 800-782-1967
select one of the options below:
Provide crisp, defined MR16 quartz halogen illumination to any existing drywall ceiling with no above access with this airtight low voltage quick connect remodel housing. The airtight design offers energy savings by reducing the flow of air through the ceiling. High tension tempered steel springs secure remodel housings evenly to ceiling, while a hole cutout template is provided for convenience. Requires a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components. 3/8" to 1 3/8" ceiling thickness. For use with compatible Nora Lighting recessed lighting products.
View more details
|
Housing (16026): Trim (90494): Total Price: |
$49.99 $15.99 $65.98 |
Provide crisp, defined MR16 quartz halogen illumination with this airtight low voltage quick connect housing. The airtight design offers energy savings by reducing the flow of air through the ceiling. Bar hangers with 13 5/8" to 24" adjustability and a 90 degree rotation are included. Requires a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components. 5/8" to 1 3/8" ceiling thickness. For use with compatible Nora Lighting recessed lighting products.
View more details
|
Housing (R6120): Trim (90494): Total Price: |
$53.99 $15.99 $69.98 |
Provide crisp, defined MR16 quartz halogen illumination to any insulated ceiling with this airtight low voltage quick connect new construction housing. The airtight design offers energy savings by reducing the flow of air through the ceiling. Bar hangers with 13 5/8" to 24" adjustability and a 90 degree rotation are included. The small profile allows for easy installation to any joist or steel stud construction. 5/8" to 1 3/8" ceiling thickness. For use with compatible Nora Lighting recessed lighting products.
View more details
|
Housing (R7334): Trim (90494): Total Price: |
$71.99 $15.99 $87.98 |
