Oculux 3 1/2&quot; Square Haze White LED Reflector Recessed Trim
Oculux 3 1/2&quot; Square Haze White LED Reflector Recessed Trim

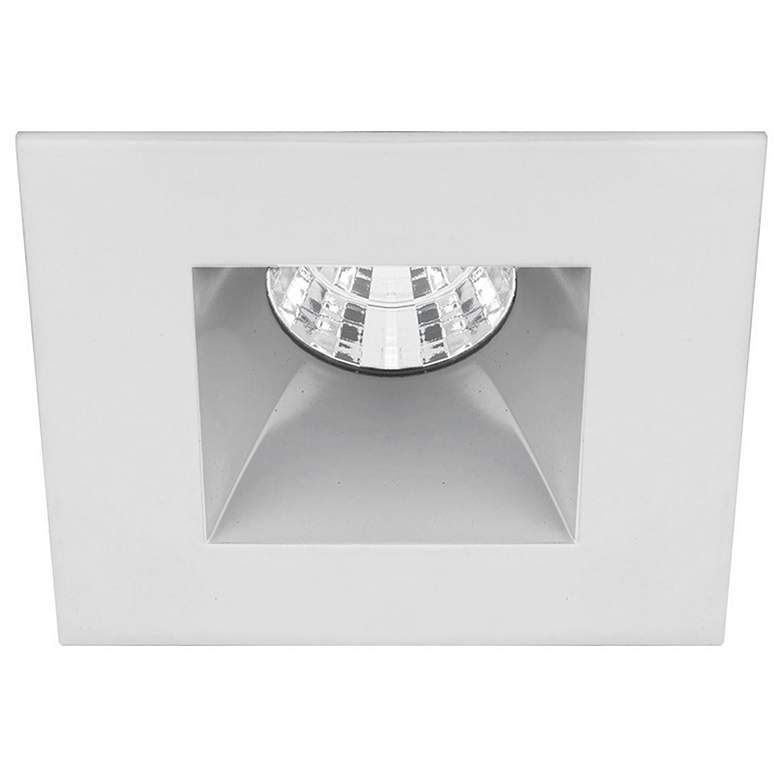

Oculux 3 1/2" Square Haze White LED Reflector Recessed Trim

- Style # 69R93
$78.95
  • Free Shipping*
  • Low Price Guarantee
In stock Ships in 1 to 2 Days
Add to Cart

Understated design makes this haze white LED reflector recessed trim and light a solid choice.

More Details >
Product Details

Complete a recessed lighting installation with a stylish, sophisticated component from the Oculux collection by WAC Lighting. This 3.5 inch square reflector recessed trim with light engine offers a tasteful, classic look that adds to a seamless space illumination. Made from haze white finish die cast aluminum, it delivers energy-saving LED lighting with a frosted glass diffuser, optional dimming features, and a 50-degree flood beam spread.

  • 4 3/4" wide x 4 3/4" deep x 4" high. Weighs 1.47 lbs.
  • 3 1/4" aperture.
  • Oculux square open reflector recessed light trim with energy-efficient LED light engine by WAC Lighting.
  • Built-in dimmable 11 watt high-powered LED module: 895 lumen light output, comparable to a 60 watt incandescent. 2700K color temperature. 90+ CRI.
  • Ultimate dimming versatility: smooth and continuous dimming with an ELV, TRIAC, or 0-10V dimmer.
  • LED averages 50,000 hours at 3 hours per day.
  • Haze white finish over aluminum construction. Frosted glass diffuser; Line voltage - 120V input; 50-degree flood beam spread; 11 watts.
  • ETL and cETL wet location listed. ADA compliant. Energy Star rated and CEC Title 24 compliant.
  • 35-degree visual cutoff provides superb glare reduction. Hardwired design.
  • For indoor/outdoor use.
  • Available in round or square open reflector and adjustable trim options.
  • Trim and LED light engine are sold as a complete unit. Housings are sold separately, available in an IC-rated airtight new construction or IC-rated remodel.
  • Compatible with WAC recessed lighting items.
  • Assembled in the USA.
Related Videos
Housing Options
Need Help With Your Lighting?

or call us at 800-782-1967
Trim With Housing Options To purchase trim with the correct housing
select one of the options below:
WAC Oculux 3 1/2&quot; IC Airtight New Construction LED Housing
WAC Oculux 3 1/2" IC Airtight New Construction LED Housing Style # 69R96

13 3/4" wide x 6 1/2" deep x 3 3/4" high. Weighs 2.91 lbs. 4 1/4" ceiling cutout. Maximum height is 24 1/2" high. Minimum height is 14 1/2" high. Oculux energy-efficient LED new construction IC-rated airtight housing by WAC Lighting. Uses one maximum 11 watt high-powered LED module (not included). Ultimate dimming versatility: smooth and continuous dimming with an ELV, TRIAC, or 0-10V dimmer. Aluminum finish and aluminum construction. Line voltage - 120V input. IC-rated for use in direct contact with ceiling insulation. ETL and cETL wet location listed. ADA compliant. Energy Star rated and CEC Title 24 compliant. 35-degree visual cutoff provides superb glare reduction. Hardwired design. For indoor/outdoor use. Compatible with WAC recessed lighting items.
View more details

Housing (69R96):
Trim (69R93):
Total Price:
$100.95
$78.95
$179.90


Oculux 3 1/2&quot; IC Airtight LED Housing with Universal Driver
Oculux 3 1/2" IC Airtight LED Housing with Universal Driver Style # 69R97

13 3/4" wide x 6 1/2" deep x 3 3/4" high. Weighs 2.91 lbs. 4 1/4" ceiling cutout. Maximum height is 24 1/2" high. Minimum height is 14 1/2" high. Oculux energy-efficient LED new construction IC-rated airtight housing with Universal 120-220-277V driver by WAC Lighting. Uses one maximum 11 watt high-powered LED module (not included). Ultimate dimming versatility: smooth and continuous dimming with an ELV, TRIAC, or 0-10V dimmer. Aluminum finish and aluminum construction. 120-240-277V input Universal. IC-rated for use in direct contact with ceiling insulation. ETL and cETL wet location listed. ADA compliant. Energy Star rated and CEC Title 24 compliant. 35-degree visual cutoff provides superb glare reduction. Hardwired design. For indoor/outdoor use. Compatible with WAC recessed lighting items. Assembled in the USA.
View more details

Housing (69R97):
Trim (69R93):
Total Price:
$127.95
$78.95
$206.90


WAC Oculux 3 1/2&quot; Aluminum LED IC-Rated Remodel Housing
WAC Oculux 3 1/2" Aluminum LED IC-Rated Remodel Housing Style # 69R98

4 1/4" high x 2" wide x 5 1/2" deep. Weighs 1 lbs. 4 1/4" ceiling cutout. Maximum height is 24 1/2" high. Minimum height is 14 1/2" high. Oculux energy-efficient LED remodel IC-rated housing by WAC Lighting. Uses one maximum 11 watt high-powered LED module (not included). Ultimate dimming versatility: smooth and continuous dimming with an ELV, TRIAC, or 0-10V dimmer. Aluminum finish and aluminum construction. Line voltage - 120V input. IC-rated for use in direct contact with ceiling insulation. Non-airtight. ETL and cETL wet location listed. ADA compliant. Energy Star rated and CEC Title 24 compliant. 35-degree visual cutoff provides superb glare reduction. Hardwired design. For indoor/outdoor use. Compatible with WAC recessed lighting items.
View more details

Housing (69R98):
Trim (69R93):
Total Price:
$100.95
$78.95
$179.90
