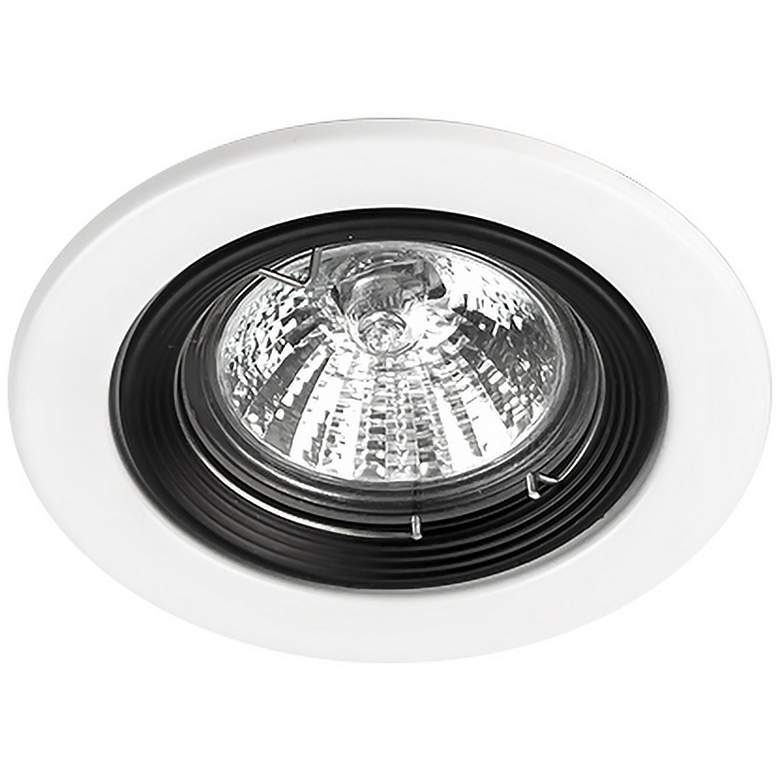

Image 1 WAC 2 1/2 inch White Low Voltage Recessed Downlight Trim

WAC 2 1/2" White Low Voltage Recessed Downlight Trim


Product Not Available

For Information: 800-782-1967

Notify me when this becomes available:

Plus you'll get great deals & offers to your inbox!
Product Details
  • 3 1/2" wide.
  • 2 3/4" aperture x compatible with 2 1/2" housings.
  • Round low voltage recessed downlight trim by WAC Lighting.
  • Takes one maximum 50 watt MR16 bulb (not included).
  • White finish over 20-gauge steel construction. Die-cast aluminum baffle.
  • Accommodates most LED MR16 or Halogen MR16 lamps.
  • Retention clips secure lens firmly to lamp.
  • Clear lens included, replaceable lens options available.
  • Housing sold separately.
  • UL and cUL listed for damp locations.
  • For use with HR-801, and HR-802 series low voltage housings.
  • Compatible with WAC recessed lighting items.

This round low-voltage recessed downlight trim simplifies and adds a clean look to recessed lighting installations. White finish steel construction offers a crisp ambiance, as a black die-cast aluminum construction baffle presents a sharp contrast. A clear lens is included, and replaceable lens options are available in this trim by WAC Lighting. UL and cUL listed for damp locations, this trim is for use with HR-801, and HR-802 series low voltage housings, sold separately.

Shop all WAC

Specifications

Product Attributes
Style Number 93946
Finish White
Color White - Ivory
Brand WAC
Usage Trim
Technical Specifications
UPC Code 790576003603
Manufacturer Number HR-836-WT
Housing Options
Need Help With Your Lighting?
call us at 800-782-1967
Trim With Housing Options To purchase trim with the correct housing
select one of the options below:
WAC 2 1/2" White Non-IC New Construction LED Housing
WAC 2 1/2" White Non-IC New Construction LED Housing Style # 73A79

14" wide x 5 1/2" deep x 5" high. Weighs 2.86 lbs. 3" ceiling cutout. Maximum height is 24" high. Minimum height is 12" high. Low-voltage new construction non-IC airtight energy-efficient LED housing with transformer by WAC Lighting. Includes one dimmable 50 watt GY5.3 base MR16 LED bulb. 450 lumen light output, comparable to a 40 watt incandescent. 3000K color temperature. 85 CRI. Smooth and continuous dimming to 10 percent with an electronic low voltage (ELV) dimmer. LED averages 25,000 hours at 3 hours per day. White finish over aluminum construction. Line voltage - 120V input. Flood beam spread. Designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing. UL and cUL damp location listed. ADA compliant. Title 24 compliant. Integral electronic 12V transformer with 120V input, 1W minimum load, and 50W maximum with HR-802, and HR-801. For indoor use. Hardwired d
View more details

Housing (73A79):
Trim (93946):
Total Price: 		$71.96
$15.16
$87.12

Add to Cart Save

WAC 2 1/2" Black Non-IC Airtight Remodel LED Housing
WAC 2 1/2" Black Non-IC Airtight Remodel LED Housing Style # 73A80

3 1/4" wide x 11 3/4" deep x 5" high. Weighs 1.92 lbs. 3" ceiling cutout. Maximum height is 11 3/4" high. Minimum height is 11 3/4" high. Low-voltage remodel non-IC airtight energy-efficient LED housing with transformer by WAC Lighting. Includes one dimmable 50 watt GY5.3 base MR16 LED bulb. 450 lumen light output, comparable to a 40 watt incandescent. 3000K color temperature. 85 CRI. Smooth and continuous dimming to 10 percent with an electronic low voltage (ELV) dimmer. LED averages 25,000 hours at 3 hours per day. Black finish over aluminum construction. Line voltage - 120V input. Flood beam spread. Designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing. UL and cUL damp location listed. ADA compliant. Title 24 compliant. Integral electronic 12V transformer with 120V input, 1W minimum load, and 50W maximum with HR-802, and HR-801. For indoor use. Hardwire
View more details

Housing (73A80):
Trim (93946):
Total Price: 		$90.98
$15.16
$106.14

Add to Cart Save

WAC 2 1/2" White Non-IC Airtight Remodel LED Housing
WAC 2 1/2" White Non-IC Airtight Remodel LED Housing Style # 73A81

3 1/4" wide x 11 3/4" deep x 5" high. Weighs 1.92 lbs. 3" ceiling cutout. Maximum height is 11 3/4" high. Minimum height is 11 3/4" high. Low-voltage remodel non-IC airtight energy-efficient LED housing with transformer by WAC Lighting. Includes one dimmable 50 watt GY5.3 base MR16 LED bulb. 450 lumen light output, comparable to a 40 watt incandescent. 3000K color temperature. 85 CRI. Smooth and continuous dimming to 10 percent with an electronic low voltage (ELV) dimmer. LED averages 25,000 hours at 3 hours per day. White finish over aluminum construction. Line voltage - 120V input. Flood beam spread. Designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing. UL and cUL damp location listed. ADA compliant. Title 24 compliant. Integral electronic 12V transformer with 120V input, 1W minimum load, and 50W maximum with HR-802, and HR-801. For indoor use. Hardwire
View more details

Housing (73A81):
Trim (93946):
Total Price: 		$71.96
$15.16
$87.12

Add to Cart Save
