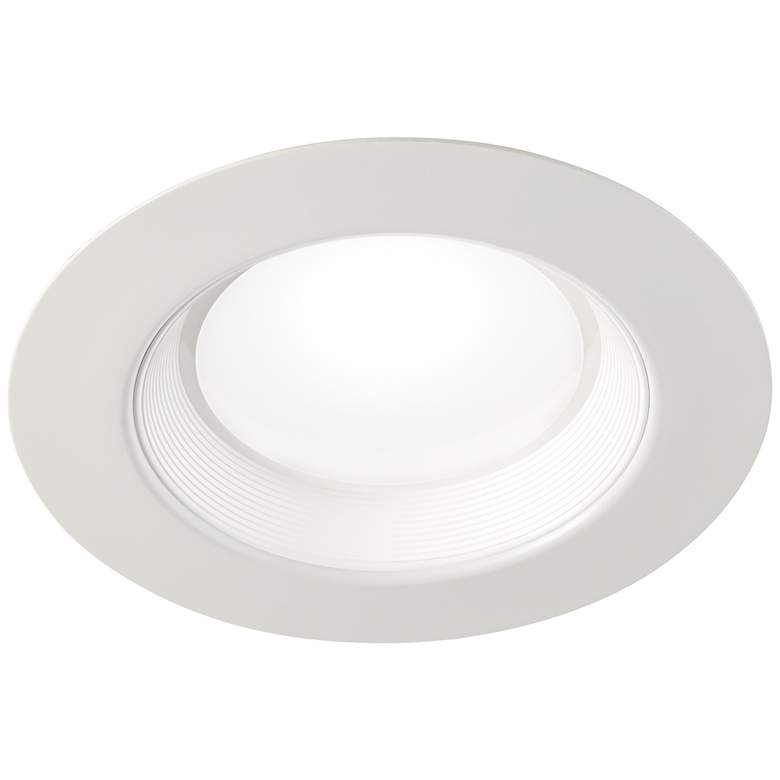

5"-6" Baffle 22.5 Watt LED Retrofit Trim in White
For Information: 800-782-1967 or
- LED retrofit downlight.
- White finish trim with baffle interior.
- ENERGY STAR® rated.
- California Title 24 compliant.
- Includes 22.5 watt LED.
- Light output 1200 lumens.
- Designed to replace a 120 watt incandescent or 30 watt CFL bulb.
- 3000K color temperature.
- 90 CRI.
- Bulb life averages 40,000 hours at 3 hours per day.
- Compatible with most 5 or 6" recessed light housings.
- Dimmable up to 90 percent with select dimmer (not included).
- Measures 7 1/2" wide, 3 3/8" high overall.
- 4 3/4" opening.
Add energy efficiency to your recessed lighting with this retrofit downlight featuring a 22.5 watt LED. Designed to replace a 100 watt incandescent or 30 watt CFL downlight in 5" and 6" recessed housings. Simply screw into your existing medium base socket. Includes white finish trim with baffle interior for a clean, classic look. Dimmable up to 90 percent with selected dimmer (not included). Dimming range varies when used with multiple fixtures.
Specifications
| Style Number | 1N636 |
|---|---|
| Type | Retrofit |
| Usage | Trim |
| UPC Code | 812586020101 |
|---|---|
| Manufacturer Number | ANL-TP120-RT5/6-DIM-E2-G3-CEC |
Product Documents
or call us at 800-782-1967
select one of the options below:
From Juno Lighting comes this line voltage new construction recessed light housing. This housing features deep lamp shielding for maximum brightness. Designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing. To be used with Juno Lighting recessed light trim. 7 3/4" wide. 7 1/2" high. 13" long. 6 7/8" ceiling cutout.
View more details
|
Housing (02469): Trim (1N636): Total Price: |
$26.99 $9.98 $36.97 |
Recessed housing for remodel application where back side of ceiling is not accessible. Installed through an opening in the ceiling from below. Design for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3" from all sides of the housing. To be used with Juno Lighting recessed light trim. 7 5/16" wide. 7 1/4" high. 13 3/4" long. 6 3/4" ceiling cutout.
View more details
|
Housing (41551): Trim (1N636): Total Price: |
$24.99 $9.98 $34.97 |
A convertible IC/Non-IC recessed light for new construction ceilings up 3" thick. The AirSeal, complies with MEC and WSEC air leakage requirements when installed as instructed. Includes pivoting bar-ends, mounting screws, and tool-free cable clamps for fast, convenient installation. 5 3/4" wide. 9" long. 7 1/2" high. 5 3/8" ceiling cut out.
View more details
|
Housing (61284): Trim (1N636): Total Price: |
$22.99 $9.98 $32.97 |
