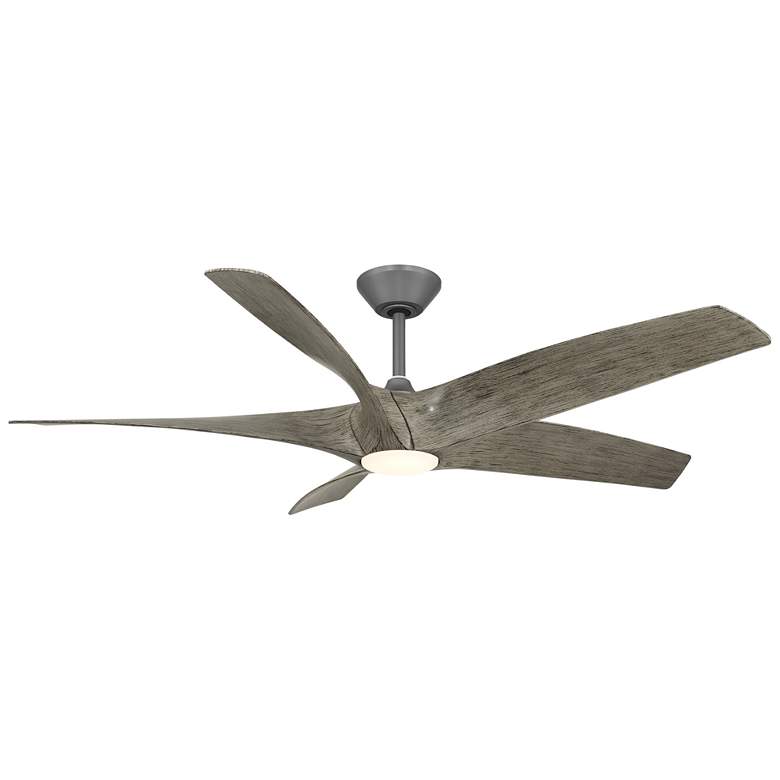

62" Modern Forms Zephyr Graphite LED Smart Ceiling Fan
Return Policy
We stand behind the products we sell with a 60 day return policy. The process is easy, just contact us to receive an authorization number. Certain restrictions apply. You can read our complete policy in our help section.
- 62" blade span. 16-degree blade pitch. 120 x 20 mm silent sensorless DC motor size.

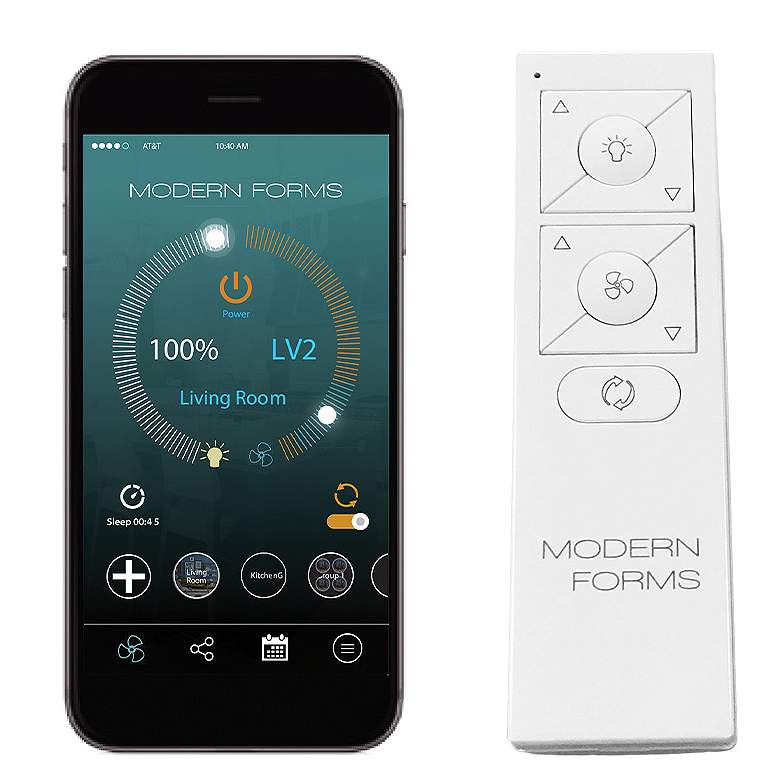

- Full-function 6-speed Bluetooth hand-held remote control.

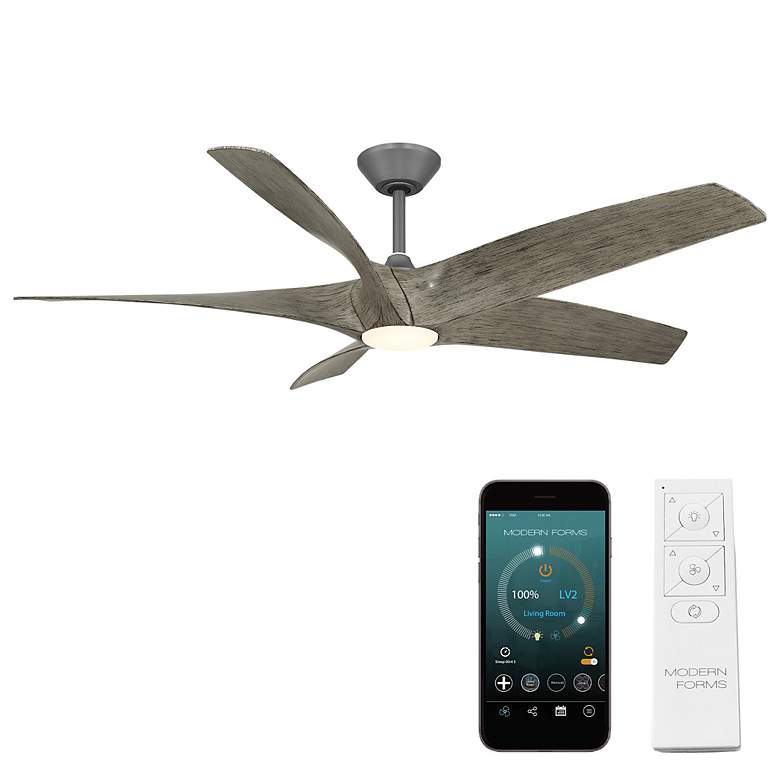

- Smart fan design that can be controlled with Modern Forms app or with voice command Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai.

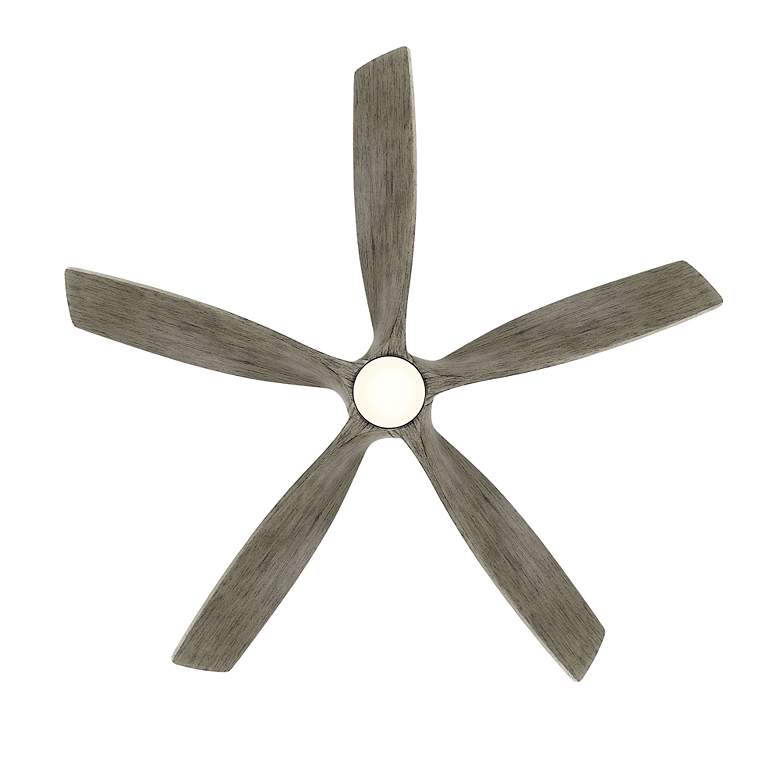

- Graphite finish aluminum DC motor. Five weathered wood finish molded ABS blades.

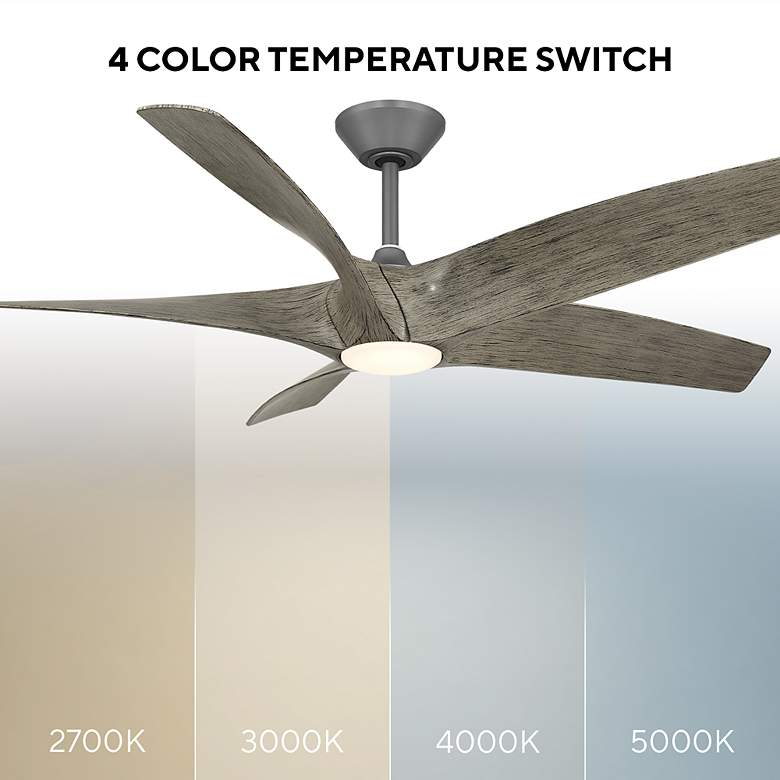

- Integrated 20 watt LED module. 846 lumen light output, comparable to a 60 watt incandescent. 2700K/3000K/ 4000K/5000K color temperature. 90 CRI.
- UL listed for wet locations. Minimum 9 foot ceiling height required for installation.

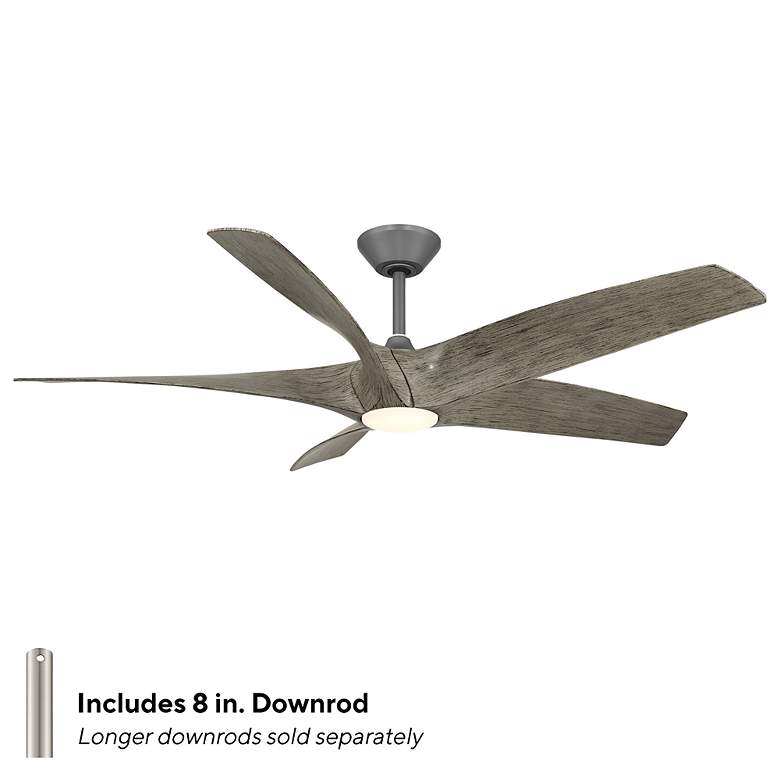

- 8" downrod included. Fan height is 12 1/2" from ceiling to blades, 16 1/2" from ceiling to the bottom of light (with 8" downrod).
- Canopy is 7" wide. Maximum 30 degrees slope with included canopy. Maximum 45 degrees slope with optional slope kit.
With smart controls and a discreet DC motor, the Zephyr modern LED ceiling fan is a form of luxury that comes in a stylish five blade design. A robust LED luminaire with artisan-crafted opal glass and thick aerodynamically soundless blades round out the design. Complete with a graphite finish that lends architectural flair. The Modern Forms app allows for seamless integration of this innovative smart fan with your smart home controls and voice control devices, including Google Home, Amazon Alexa, and Samsung SmartThings.
Product Documents
| Category | Features (Mouseover the underlined feature to review its benefits) |
|---|---|
| Speeds |
6 Speed
Allows Control of Air Movement
|
| Fan Name | 62" Modern Forms Zephyr 5 LED Smart Ceiling Fan |
| Blade Pitch |
16°
Very Good Airflow
|
| Blade Span |
62"
Suited to Large Rooms 15 X 15 with 9ft Ceiling Minimum
|
| Blade Type | Not Reversible Blades |
| Reverse Air Flow |
Control Reverse
Save Energy in Summer & Winter:
When Fan is stopped, Wall or Hand Held Control will Seasonally Change Fan Direction. Keep Cool Air Down in Summer with Counter Clock Wise Air Flow. During the Winter, Operate Fan in Clock Wise Direction to Keep Warm Air from Rising. |
| Mounting System | Single |
| Light Kit |
Included/Integrated
Great Value for Customer.
Creates a Designer Look |
| Manufacturer's Warranty |
MFG. Limited Lifetime Motor Warranty + 1Yr Component Parts
Assurance of Quality Product
|
| Weight | 17 |
| Airflow | 5220 (Avg CFM) / 7307 (High CFM) |
| ElectricityUse | 25 (Avg Watt) / 34 (High Watt) |
| AirflowEfficiency | 210 ( Avg Efficiency) / 215 (High Efficiency) |
| Other | Wet Location |
