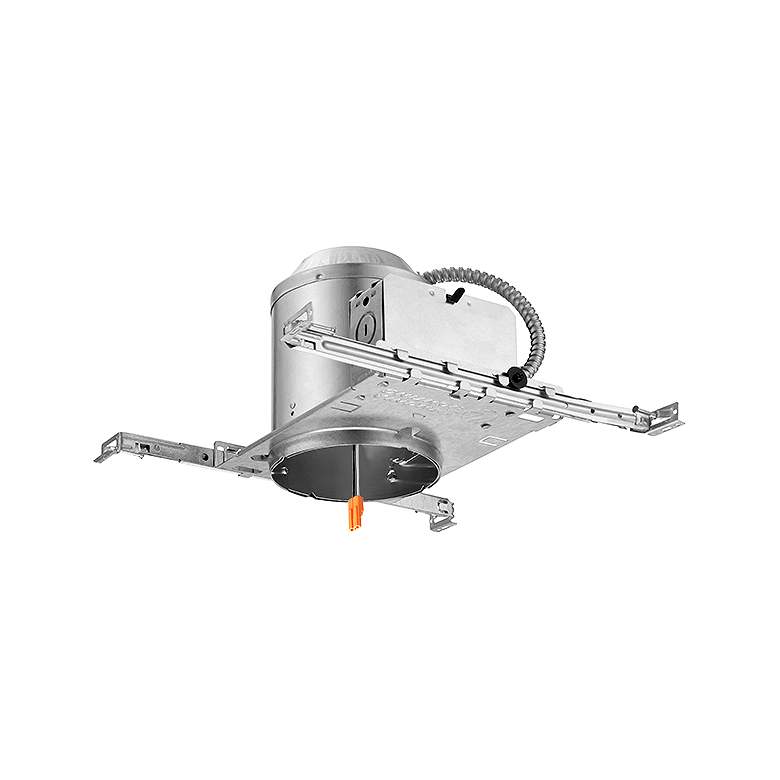

Lithonia 5&quot; LED IC/Non-IC New Construction Housing
Lithonia 5&quot; LED IC/Non-IC New Construction Housing

Lithonia 5" LED IC/Non-IC New Construction Housing

- Style # 5G698
$21.99
  • Ships Free with Orders Over $49*
Ships Today! (orders by 5 PM Eastern)
Add to Cart

This new construction recessed LED housing is rated for damp locations.

More Details >
Product Details

This 5" LED recessed housing is rated IC or non-IC and is for use in new construction applications only. Approved for all ceiling and wiring types, and for direct burial in insulation. Galvanized bar hangers expand up to 24" and feature stepped-shank nail and positioning guide with integral T-bar locks and 2 locking screws to hold fixture into position. Expandable hangers allow off-center mounting in wood joist or T-bar ceilings. Maximum width 25 1/2", minimum width 13 1/4", or cut to fit 9" on center joist construction. Quick disconnect provided for power connection to the LED module. Vertical housing adjustment allows for flush-mounting with ceiling face; suitable for ceilings up to 1 1/2" thick. Compatible with Lithonia Lighting recessed light products.

  • 5" LED IC/non-IC recessed light housing for new construction applications.
  • Air-tight aluminum housing with galvanized steel pan.
  • Galvanized bar hangers span up to 24".
  • Ground wire included.
  • 120 volt only.
  • 2" x 8" and 2" x 6" wood joist or T-bar installation.
  • Vertical adjustment allows flush-mounting with ceiling face.
  • Suitable for ceilings up to 1 1/2" thick.
  • UL-rated and listed for damp locations.
  • Compatible with Lithonia Lighting recessed products.
  • 12 7/8" wide.
  • 13 1/4" deep.
  • 7 1/2" high.
  • Needs 5 1/2" ceiling opening.
